Rack Bearing Preload (on Vehicle Adjustment)

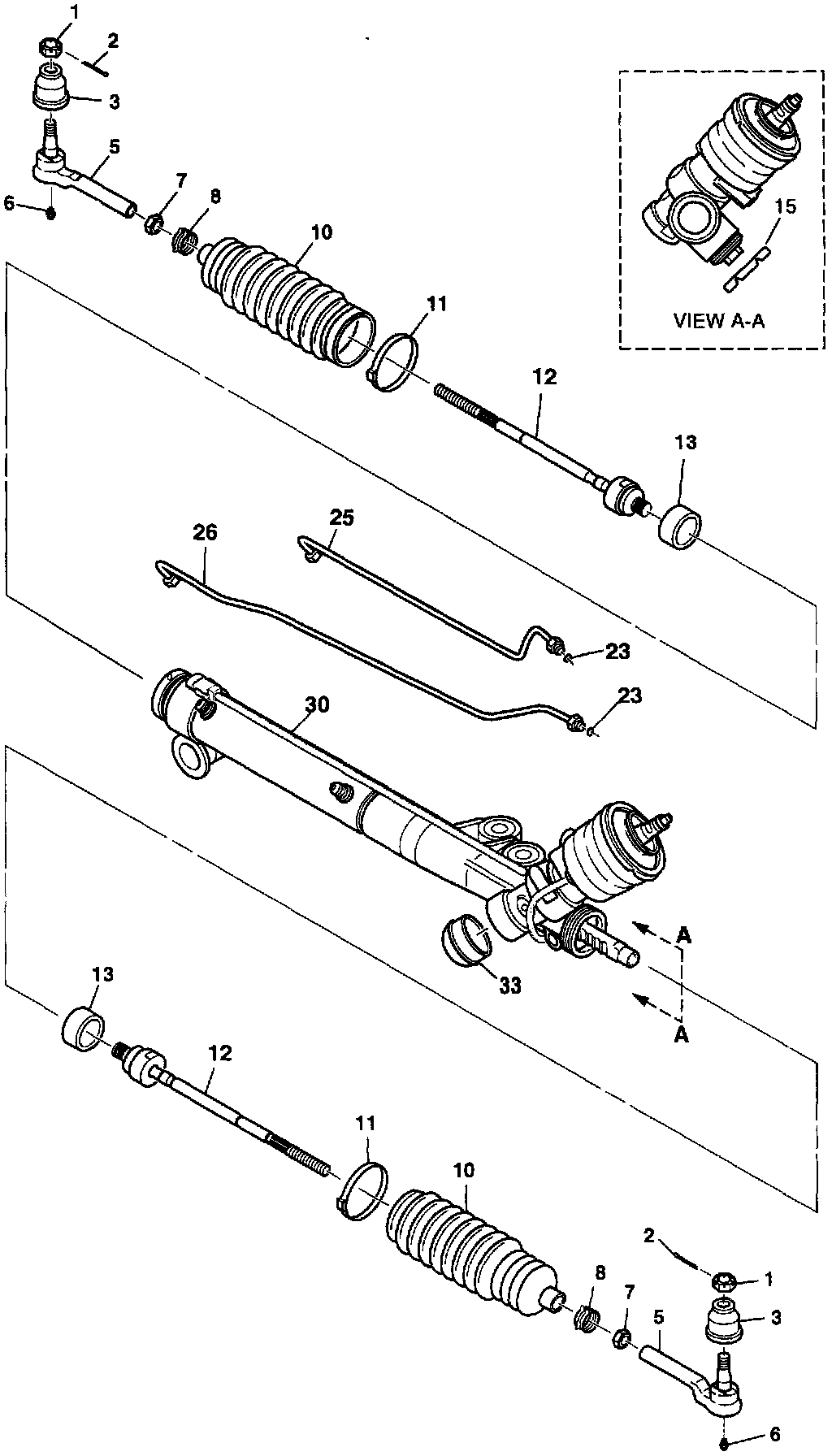

Power Rack And Pinion - End Take Off:

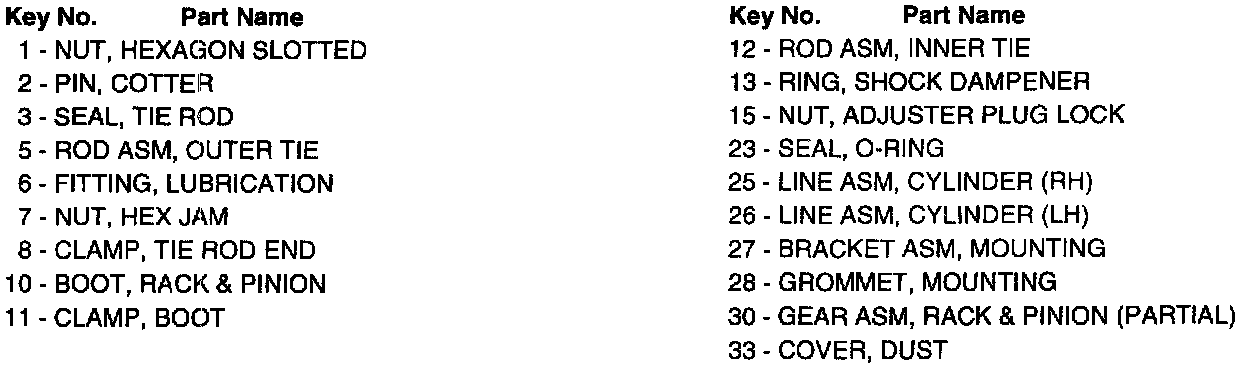

Power Rack And Pinion - End Take Off - Legend:

1. Loosen adjuster plug locknut (15) and turn adjuster plug clockwise until it bottoms in gear assembly (30), then back off 50° to 70° (approximately one flats).
2. Make adjustment with front wheels raised and steering wheel centered. Be sure to check returnability of the steering wheel to center after adjustment.
3. Lock nut (15) to adjuster plug.
^ Tighten lock nut (15) to 68 Nm (50 ft. lbs.) while holding adjuster plug stationary.
