F/Pump Fuse, HAZD/Stop Fuse And INTR LP Fuse
F/Pump Fuse, HAZD/Stop Fuse And INTR LP Fuse

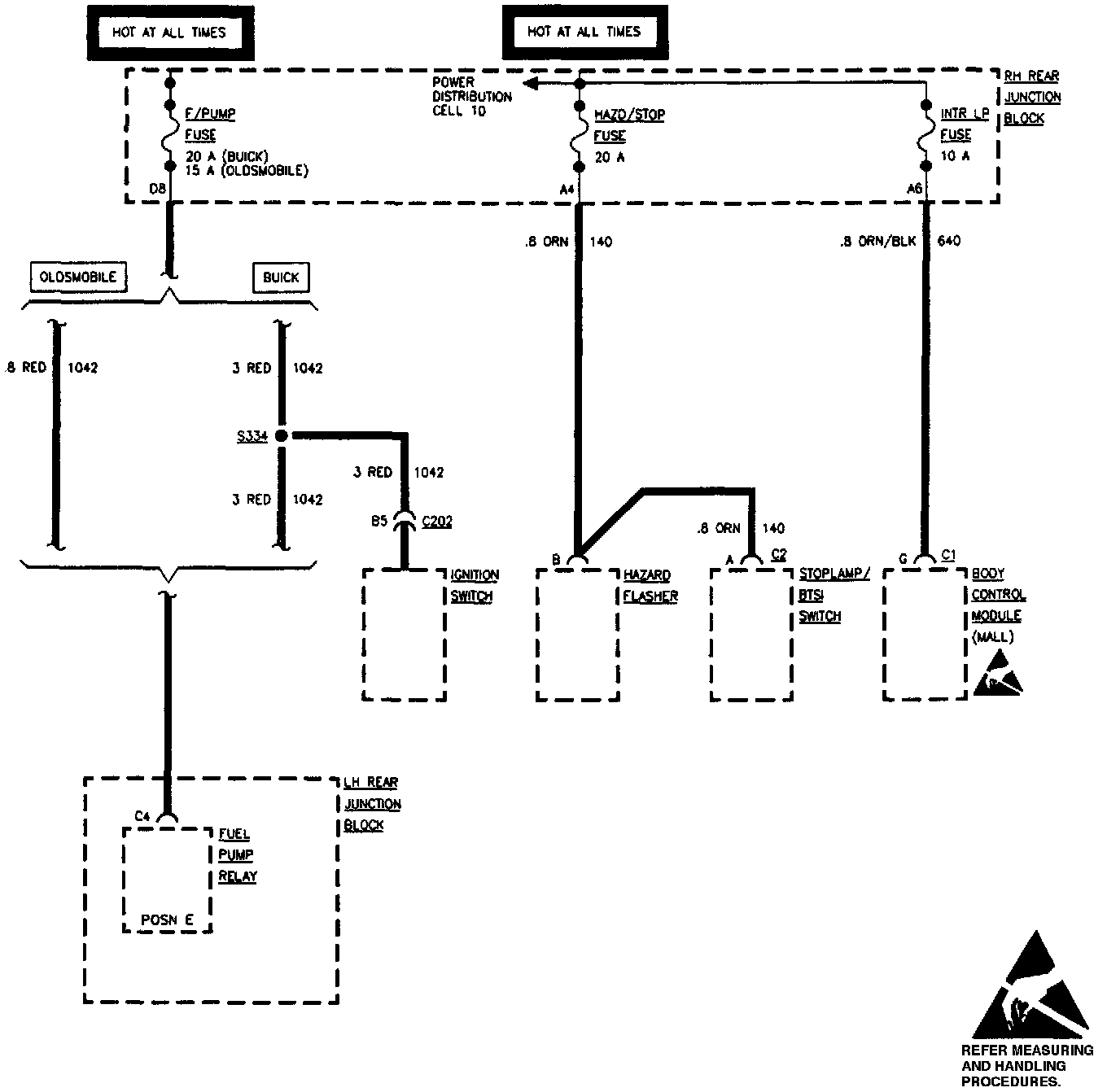

F/Pump Fuse (15/20 A), HAZD/Stop Fuse (20 A) And INTR LP Fuse (10 A):
