F/DR REL Fuse and Trunk Release Fuse
F/DR REL Fuse and Trunk Release Fuse

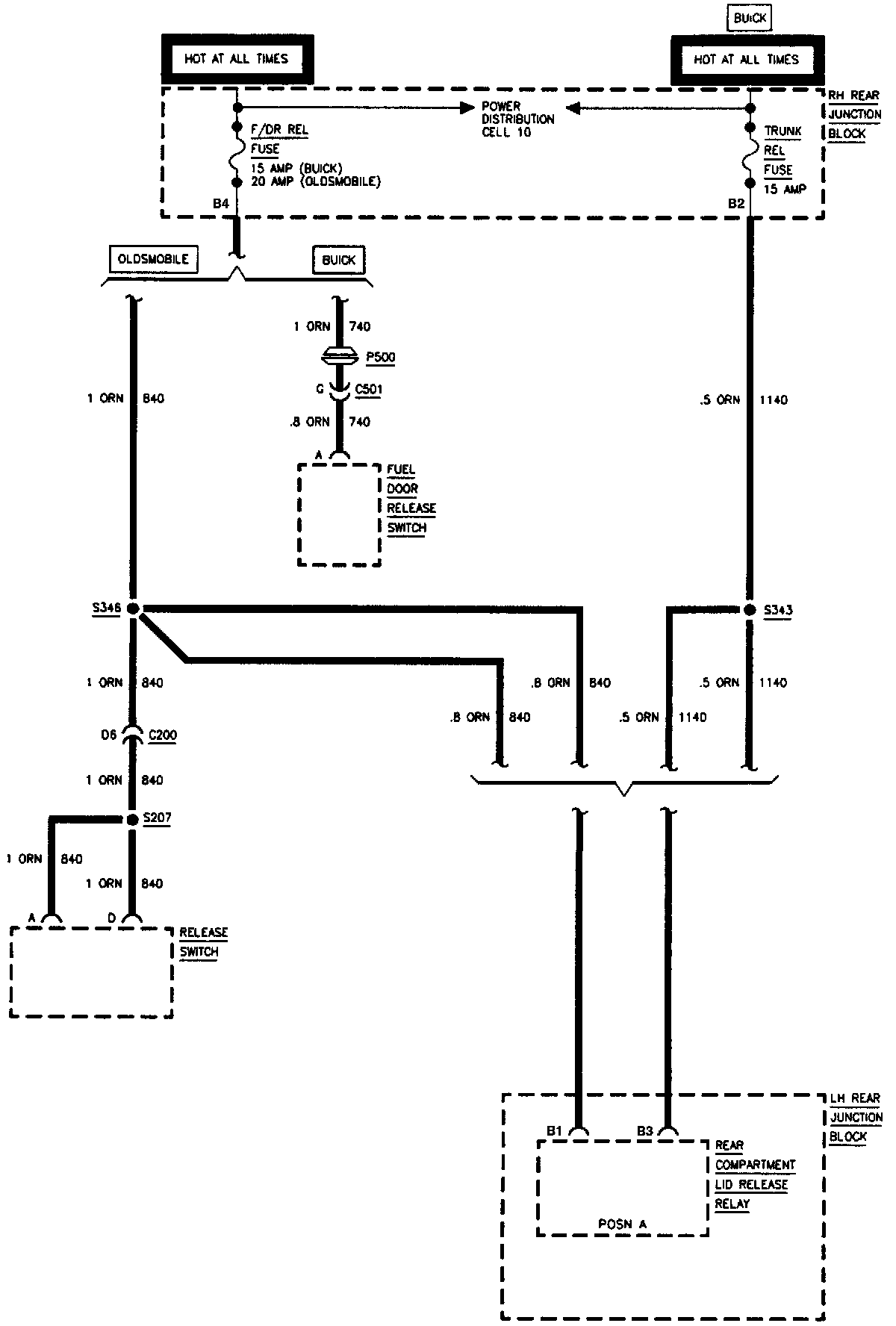

F/DR REL Fuse (15/20 A) And Trunk REL Fuse (15 A):
