Home >> Oldsmobile >> 1998 >> Aurora V8-4.0L VIN C >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Power Distribution Diagrams >> Circuit Breakers >> PWR ST Circuit Breaker

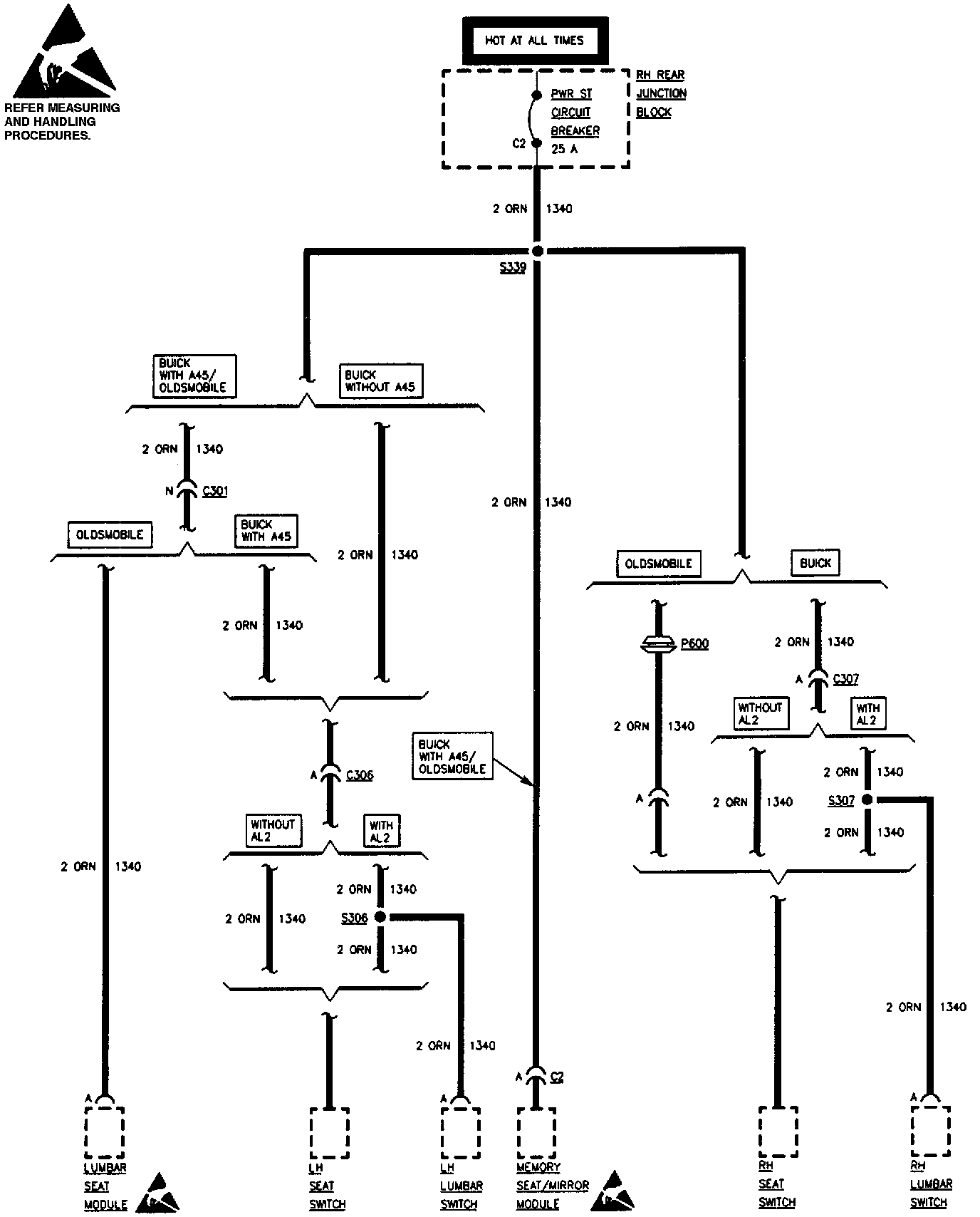

PWR ST Circuit Breaker

PWR ST Circuit Breaker (25 A):
