Ride Height Sensor: Service and Repair

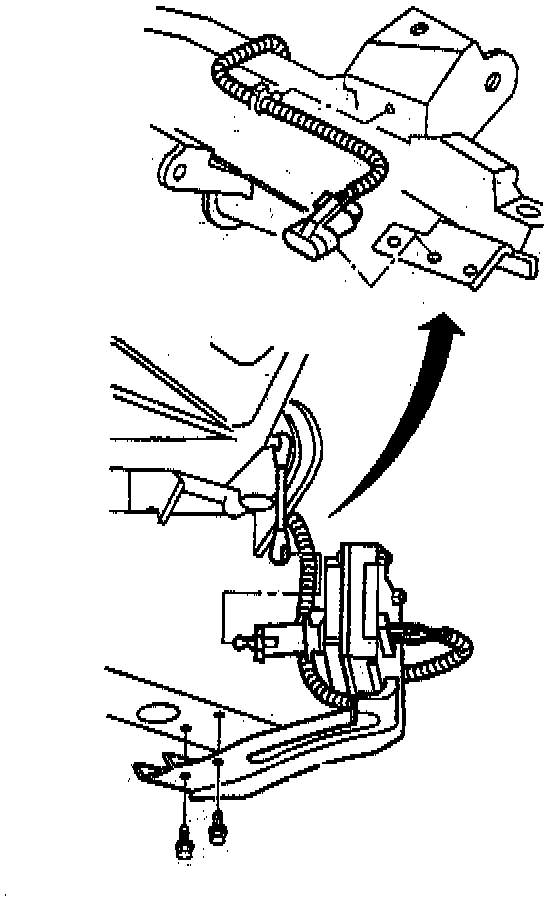

REMOVAL PROCEDURE
1. Raise the vehicle.
2. Remove the height sensor connector from the vehicle harness connector.
3. Remove the height sensor harness clip and the connector from the vehicle.
4. Disconnect the link from the height sensor actuating arm.
5. Remove the two bolts and the height sensor with the bracket from the vehicle.
6. Remove the four nuts and the bracket from the height sensor.

INSTALLATION PROCEDURE

NOTICE: Always use the correct fastener in the proper location. When you replace a fastener, use ONLY the exact part number for that application. The manufacturer will call out those fasteners that require a replacement after removal. The manufacturer will also call out the fasteners that require thread lockers or thread sealant. UNLESS OTHERWISE SPECIFIED, do not use supplemental coatings (paints, greases, or other corrosion inhibitors) on threaded fasteners or fastener joint interfaces. Generally, such coatings adversely affect the fastener torque and joint clamping force, and may damage the fastener. When you install fasteners, use the correct tightening sequence and specifications. Following these instructions can help you avoid damage to parts and systems.

1. Install the bracket on the height sensor with four nuts.

Tighten
Tighten four nuts to 3 Nm (26 inch lbs.).

2. Install the height sensor with the bracket on the vehicle with two bolts.

Tighten
Tighten two bolts to 11 Nm (97 inch lbs.).

3. Connect the link to the height sensor actuating arm.
4. Connect the height sensor harness clip and the connector to the vehicle.
5. Connect the height sensor connector to the vehicle harness connector.
6. Lower the vehicle.
7. Adjust the height sensor. Refer to TRIM HEIGHT SENSOR ADJUSTMENT.
