Electronic Brake Control Module: Service and Repair

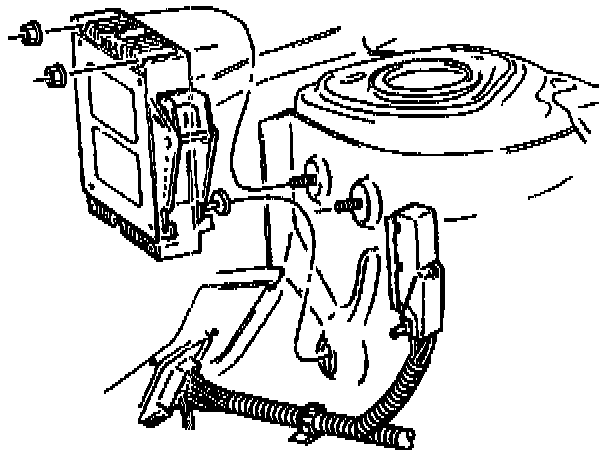

REMOVAL PROCEDURE





NOTICE: To prevent equipment damage, never connect or disconnect the wiring harness connection from the Electronic Brakes and Traction Control Module (EBTCM) with the ignition switch in the RUN position.

1. Remove the EBCM/EBTCM connector by rotating the locking clip forward.
2. Remove the mounting nuts.
3. Remove the EBCM/EBTCM by sliding it up and away from the strut tower.



INSTALLATION PROCEDURE





1. Install the EBCM/EBTCM into the lower locating slot. Slide the EBCM/EBTCM downward.

NOTICE: Refer to Fastener Notice in Service Precautions.

2. Install the mounting nuts.
^ Tighten the nuts to 11 Nm (96 inch lbs.).
3. Connect the EBCM/EBTCM connector.
