Air Cleaner Housing: Service and Repair

Removal Procedure

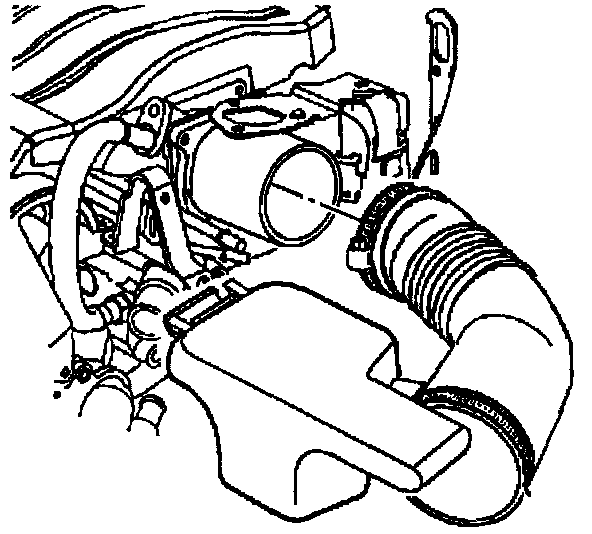

1. Loosen both air duct clamps.
2. Remove duct from air cleaner and rotate duct upwards around the Mass Air Flow (MAF) sensor.
3. Disconnect the IAT sensor connector.

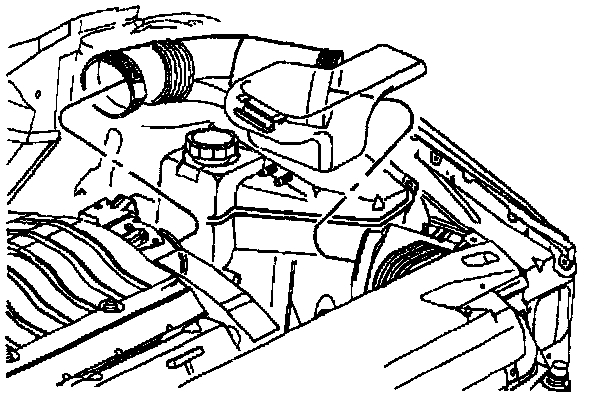

4. Remove the rear bolt securing the air cleaner to the frame rail.
5. Lift up on the inboard edge of the air cleaner to dis-engage the air cleaner from the front stud.
6. Slide the air cleaner inboard and lift and rotate upwards to remove assembly.
7. Remove the inlet snorkel by pulling upwards and inboard.

Installation Procedure
1. Install the inlet snorkel into the rectangular hole in the sheet metal. The flat rubber grommet should be contacting the outboard edge of the hole.
2. Place air cleaner assembly over the inlet snorkel and slide air cleaner assembly outboard until it catches the inlet snorkel.
3. Secure the front air cleaner grommet onto the frame rail.
4. Insert the rear bolt through the rear grommet into the frame rail.

Tighten to 12 Nm (9 ft. lbs.).

5. Rotate the clean air duct down and install on the air cleaner cover.

Tighten to 3.5 Nm (31 in. lbs.) at the throttle body, 1.8 Nm (16 in. lbs.) at the air cleaner.

6. Reconnect the IAT sensor.
