Removal Procedure
TOOLS REQUIREDJ34730, Fuel Pressure Gauge
NOTICE: Do not damage the MAF sensor screen. A damaged screen could restrict airflow and lead to a driveability concern.
REMOVAL PROCEDURE
1. Perform the Fuel Pressure Release procedure.
Description:
2. Remove the MAF sensor electrical connector (1) from the MAF sensor (2).
Description:

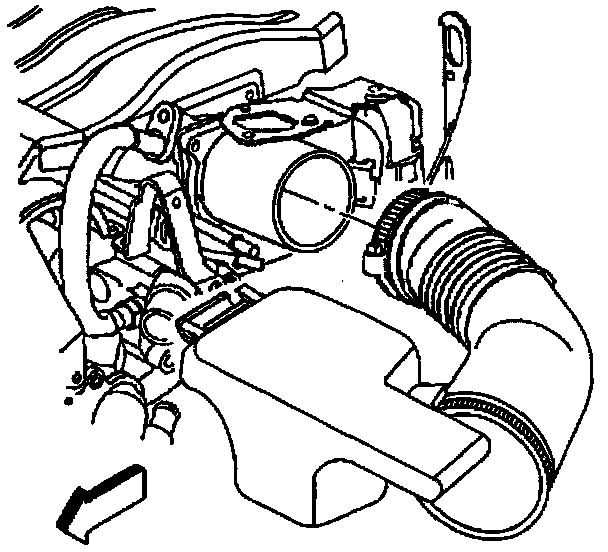

3. Remove the MAF sensor bolts.
4. Remove the MAF sensor and intake air duct as an assembly.
Description:
5. Remove the cruise control cable (2) from accelerator controls cable bracket (1).
6. Remove the accelerator cable (3) from accelerator controls cable bracket (1).
7. Remove the cruise control cable (2) from throttle body lever.
Description:
8. Remove the accelerator control cable (1) from throttle body lever.
Description:
9. Remove the TP sensor electrical connector from the TP sensor.
Description:
10. Remove the IAC valve electrical connector from the IAC valve.
Description:
11. Drain the coolant from the system. Refer to engine Cooling.
IMPORTANT: Make sure the vehicle has had sufficient cool-down time before servicing the cooling system.
12. Remove the throttle body coolant hoses (1) at the throttle body.
Description:
13. Remove the fuel feed and return lines from the retainer (1) on the accelerator controls cable bracket.
14. Remove the transaxle vent hose (2) clip from the accelerator controls cable bracket (1).
Description:
15. Remove the transaxle shift cable from the accelerator controls cable bracket.
Description:
16. Remove the accelerator controls cable bracket and bolts.
Description:
17. Remove the throttle body (1) and gasket (2) from the throttle body spacer (3).
