Disassemble / Assemble Procedure

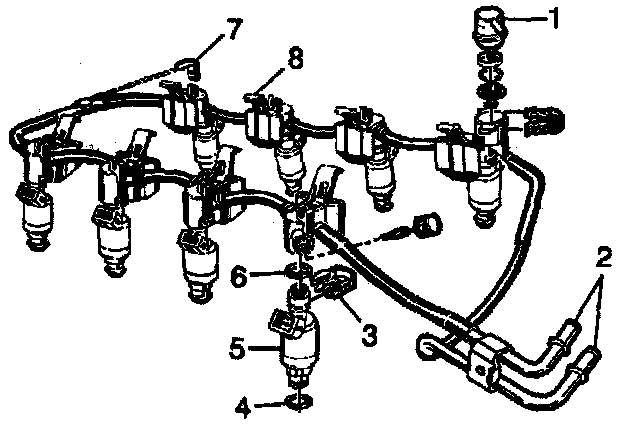

DISASSEMBLY PROCEDURE

1. Remove the fuel injector harness.

2. Remove the clips (3) from the injectors (5) on the fuel rail.

3. Remove the upper (3) and lower (2) seals from the injector(s) (1).

4. Discard the seals after removal.

ASSEMBLE PROCEDURE

1. Lubricate the upper (6) and lower (4) injector O-rings with clean oil and install the O-rings on to the fuel injectors.

2. Assemble the injectors to the fuel rail with new retainer clips.

3. Assemble the injector harness.
