Accelerator Controls (Pedal) Replacement/Repair

REMOVAL PROCEDURE

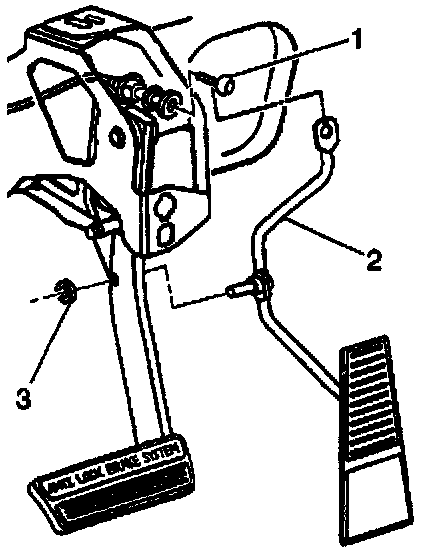

1. Remove the accelerator cable (1) from accelerator pedal.
2. Remove the pedal clip retainer.
3. Remove the washer (3).
4. Remove the bushings.
5. Remove the accelerator pedal assembly (2).


INSTALLATION PROCEDURE

IMPORTANT: The mounting surface between support and dash panel must be free of insulation. The carpet and padding in the pedal area must be positioned to lay flat and be free of wrinkles and bunches.

1. Install the accelerator pedal assembly (2).
2. Install the pedal clip retainer.
3. Install the bushings.
4. Install the washer (3).

IMPORTANT: Check for complete throttle opening and closing positions by operating accelerator pedal. Also check for poor carpet fit under the accelerator pedal. Throttle should operate freely without bind between full closed and wide open throttle.

5. Install the accelerator cable on accelerator pedal (1).
