Exhaust Crossover Pipe

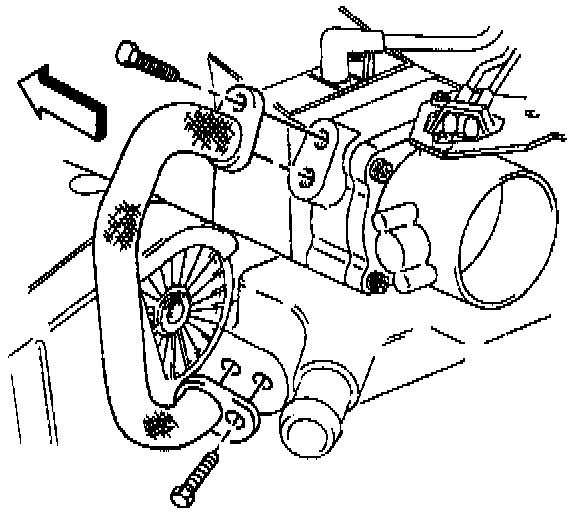

REMOVAL
1. Remove the bolt from throttle body spacer.
2. Remove the fitting at the water pump crossover.
3. Remove the EGR Water Pump Crossover Pipe.

INSTALLATION
1. Install the fitting into water pump crossover.

Tighten to 24 Nm (18 lb. ft.).

2. Install the bolt into the throttle body spacer.

Tighten to 24 Nm (18 lb. ft.).
