Engine Controls - New Ignition Wiring P0322/371/372
File In Section: 6E - Engine Fuel & EmissionBulletin No.: 71-65-69
Date: January, 1998
SERVICE MANUAL UPDATE
Subject:

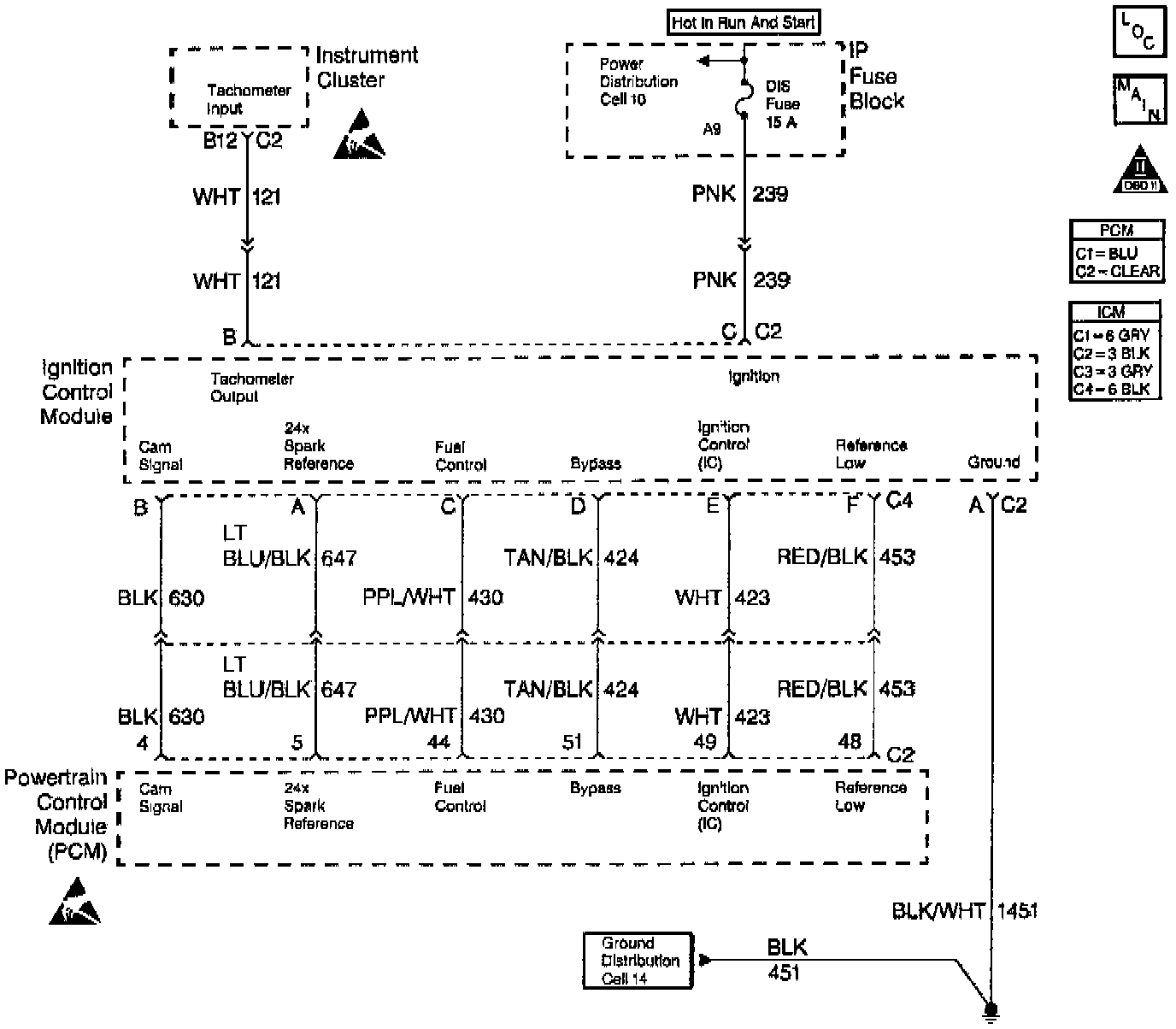

Section 6E - Engine Controls Revised Schematic and Connector Designation
Model:
1998 Oldsmobile Aurora
with 4.0L Engine (VIN C - RPO L47)
The revised schematic is to be substituted for the following DTCs:
P0322 - P0371 - P0372 - P1320 - P1323
P1350 - P1370 - P1371 - P1376
