Aurora V8-4.0L VIN C
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Power Distribution Diagrams
>>
Fuses
>>
LH EXT LPS Fuse
LH EXT LPS Fuse

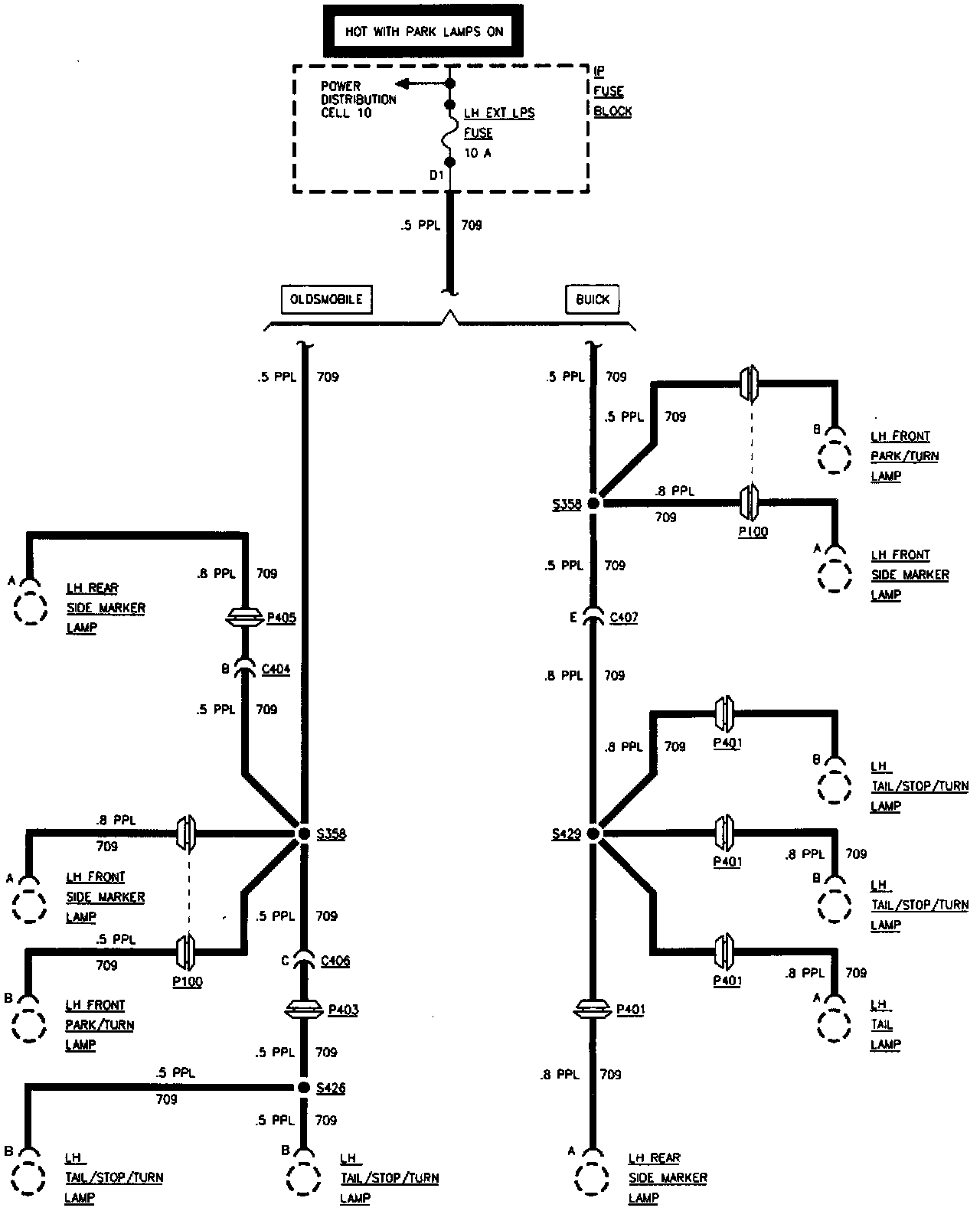

LH EXT LPS Fuse (10 A):
