Home >> Oldsmobile >> 1998 >> Aurora V8-4.0L VIN C >> Repair and Diagnosis >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Power Distribution Diagrams >> Fuses >> AUX PWR Fuse and Cruise Fuse

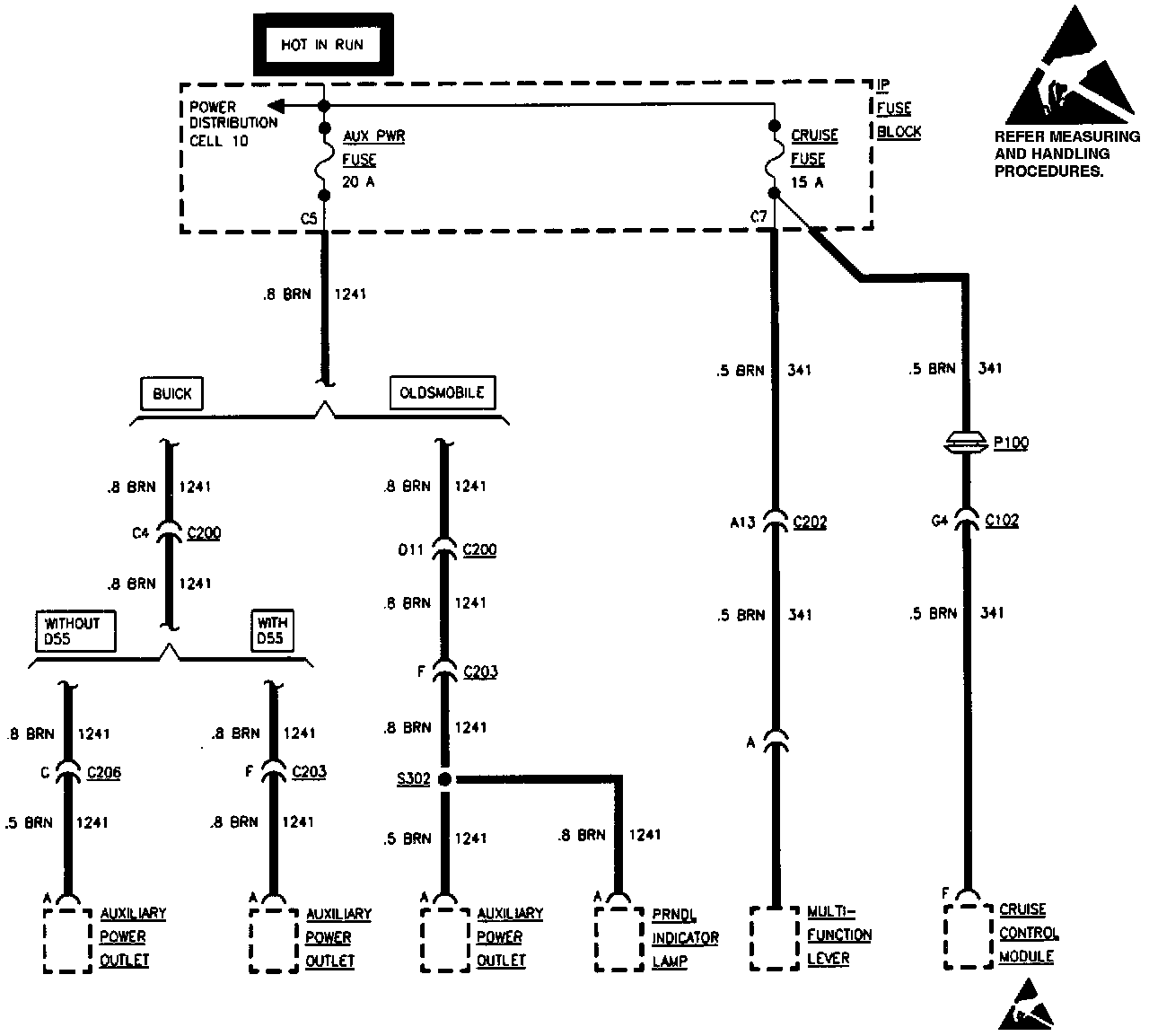

AUX PWR Fuse and Cruise Fuse

AUX PWR Fuse (20 A) And Cruise Fuse (15 A):
