Home >> Oldsmobile >> 1998 >> Aurora V8-4.0L VIN C >> Repair and Diagnosis >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Power Distribution Diagrams >> Circuit Breakers >> PWR WDO/SUN RF Circuit Breaker

PWR WDO/SUN RF Circuit Breaker

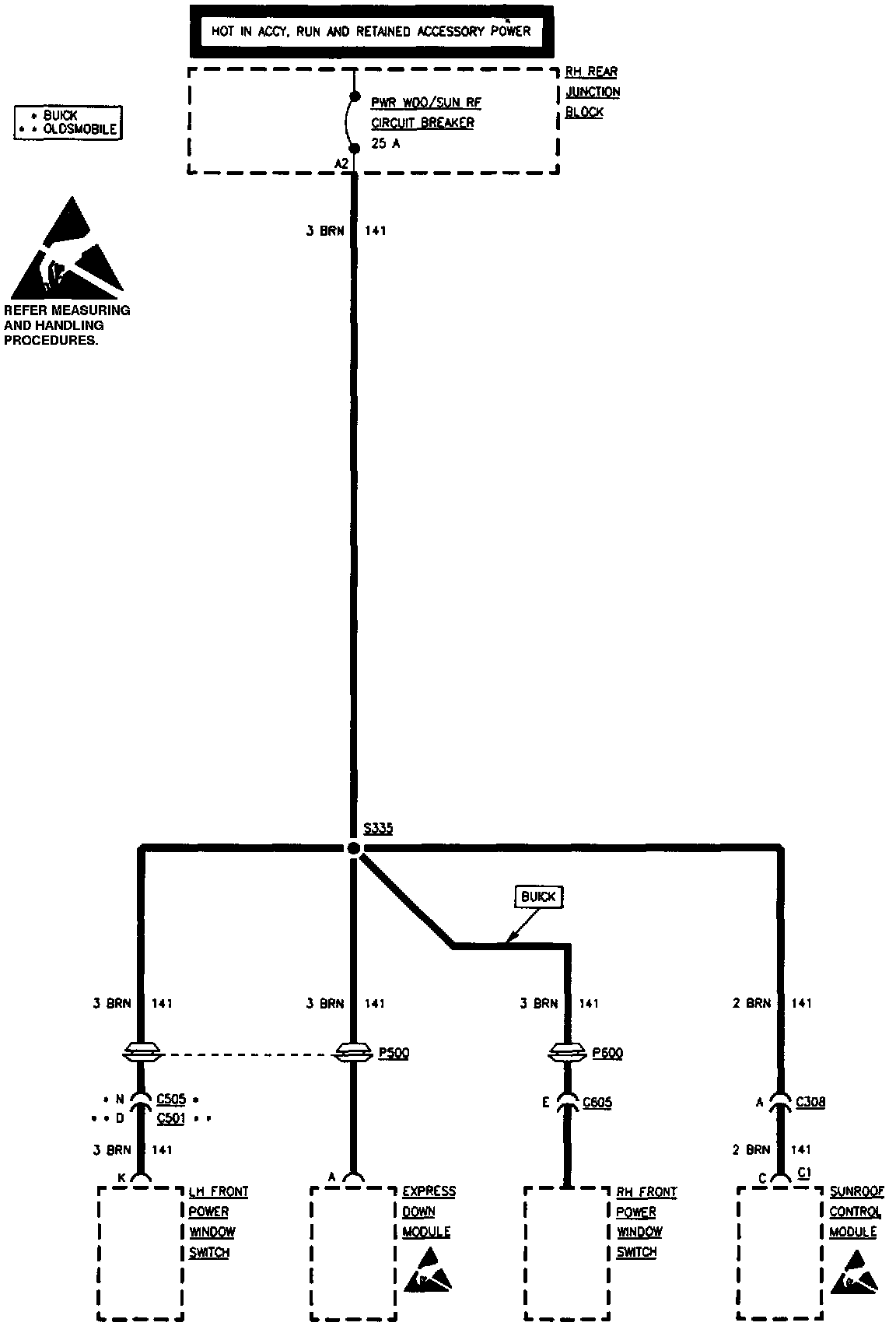

PWR WDO/SUN RF Circuit Breaker (25 A):
