Headlamp Assembly Replacement

Description:

REMOVE OR DISCONNECT
1. Front bumper fascia.
2. Front impact bar.
3. Apply masking tape to forward edge of fender to prevent damaging headlamp lens upon removal and installation.

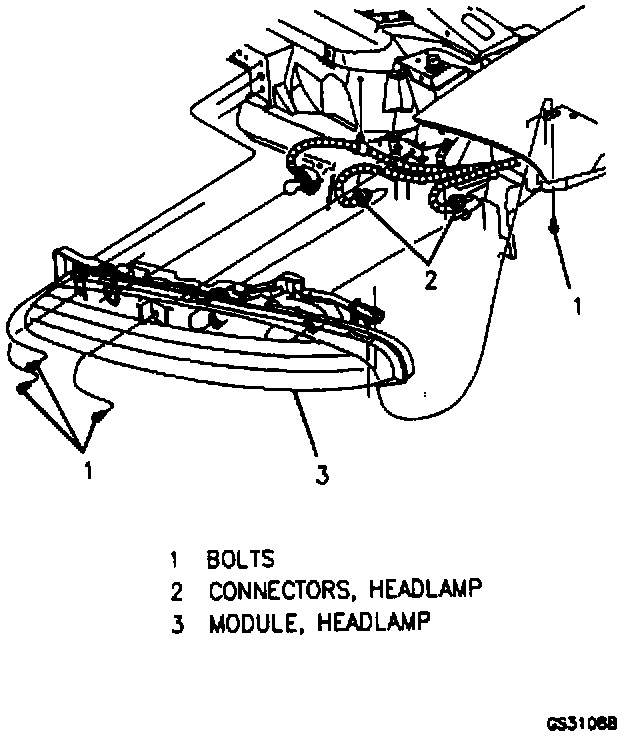

4. Four bolts retaining headlamp to vehicle.
5. Headlamp, by lowering inboard edge of headlamp and lifting outboard edge of headlamp to disengage locator pin from fender.
6. Electrical connectors.
7. Park lamp socket by squeezing tang and turning counterclockwise.
8. Headlamp bulbs by turning counterclockwise.

INSTALL OR CONNECT
1. Headlamp bulbs by turning clockwise.
2. Park lamp socket by turning clockwise until tang on socket engages with retainer on headlamp.
3. Electrical connectors.
4. Headlamp to vehicle. Be sure that locator pin on headlamp is seated properly to fender.
5. Bolts to retain headlamp.

Tighten
^ Bolts to 9.5 N.m (84 lb. in.).

6. Masking tape from fender. Remove tape residue as necessary.
7. Front impact bar.
8. Front bumper fascia.
9. If new headlamp has been installed, remove the horizontal aim adjuster restrictor from headlamp and discard.
10. Check headlamp aim. Refer to Headlamp Aiming. Adjustments
