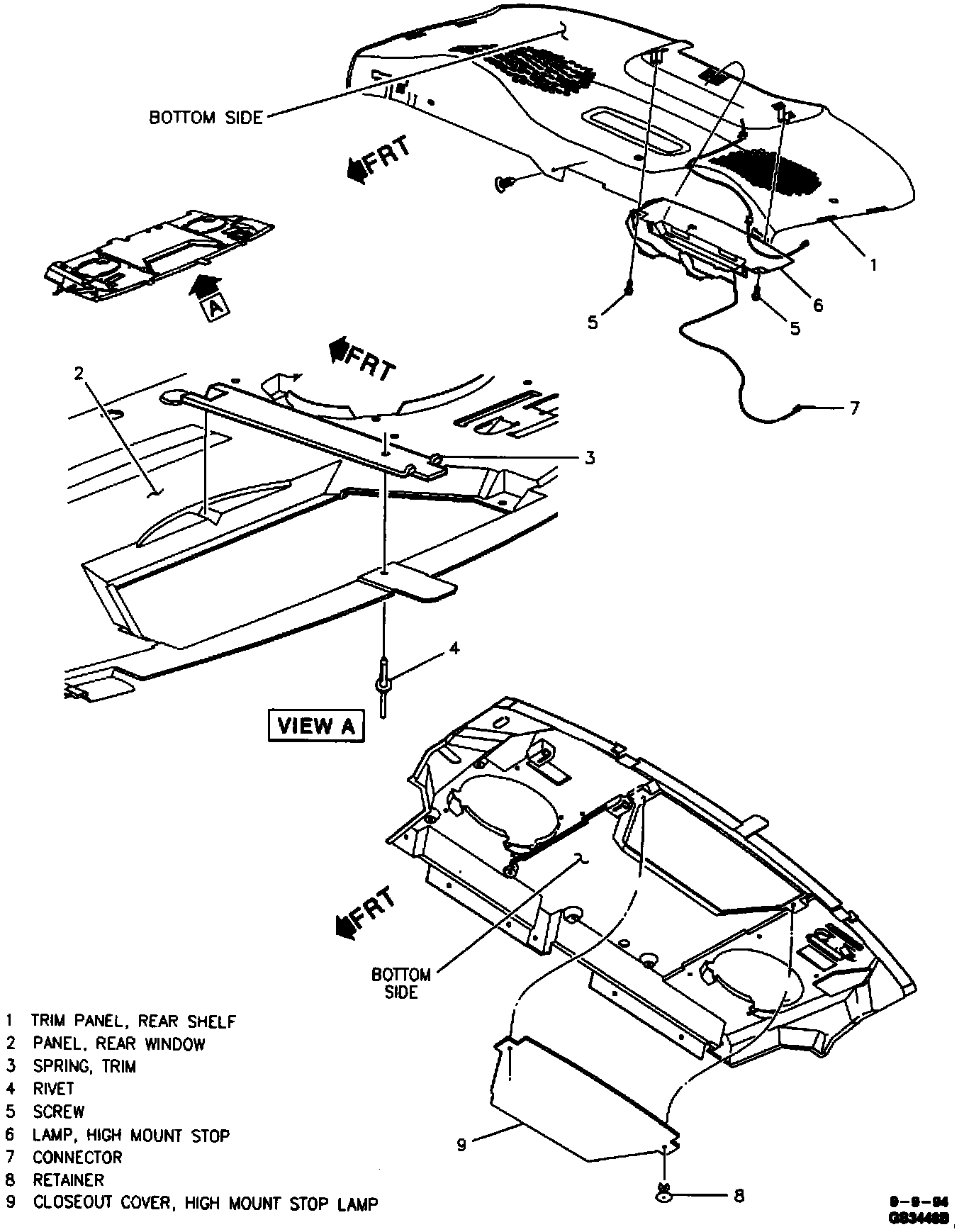

Center Mounted Brake Lamp: Service and Repair

Description:

REMOVE OR DISCONNECT
1. From inside rear compartment, Remove two push-in retainers from CHMSL access cover.
2. Push upward and rotate center brace away from insulation.
3. Screws retaining CHMSL to rear shelf.
4. Lamp assembly by pushing lamp rearward to disengage tabs.
5. Sockets from lamp assembly by turning counterclockwise.
6. Bulbs from socket.

INSTALL OR CONNECT
1. Bulbs to sockets.
2. Sockets to lamp assembly by turning clockwise.
3. Lamp assembly by pushing lamp forward and engaging tabs.
4. Screws.
5. Center brace.
6. CHMSL access cover and two retainers.
