Instrument Panel Cluster Replacement

Description:

REMOVE OR DISCONNECT
1. Disable SIR.
2. Knee bolster.
3. Upper steering column bracket nuts (2). Lower steering column.
4. Trunk/fuel door release trim plate and interior lamp trim plate by pulling rearward. Disconnect electrical connectors as necessary.
5. Center air outlet trim panel.
6. Instrument cluster trim panel, pull down and rearward to clear upper IP trim pad.

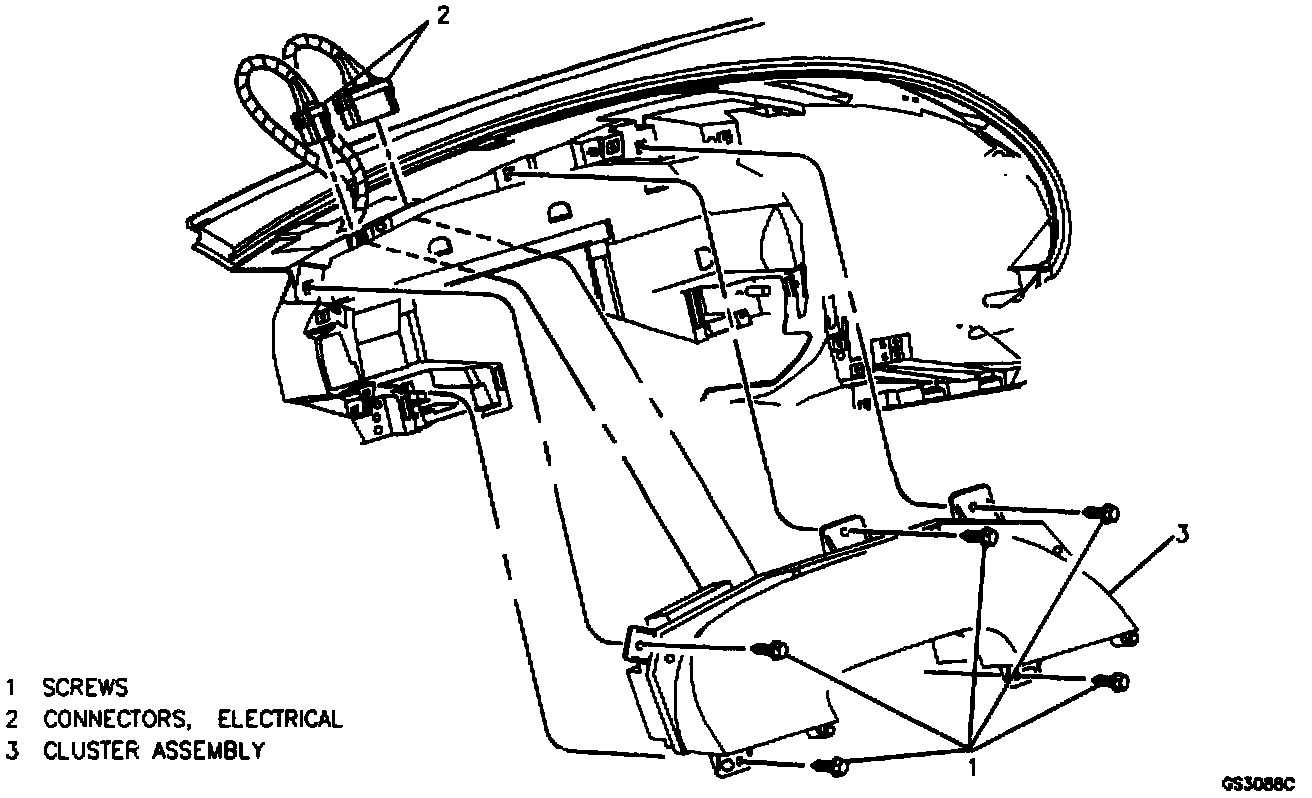

7. Screws (5) from instrument cluster.
8. Two (2) electrical connectors on back of instrument cluster.
9. Instrument cluster from IP assembly.

INSTALL OR CONNECT
1. Instrument cluster to IP assembly.
2. Two (2) electrical connectors to back of instrument cluster.
3. Screws (5) from instrument cluster to IP assembly.
4. Steering column bracket nuts (2).
5. Knee bolster.
6. Instrument cluster trim panel.
7. Center air outlet trim panel.
8. Trunk/fuel door release door trim plate and interior lamp trim plate. Connect electrical connectors as necessary.
9. Enable SIR.
