Home >> Oldsmobile >> 1998 >> Aurora V8-4.0L VIN C >> Repair and Diagnosis >> Heating and Air Conditioning >> Diagrams >> Electrical Diagrams >> Compressor Controls: Automatic

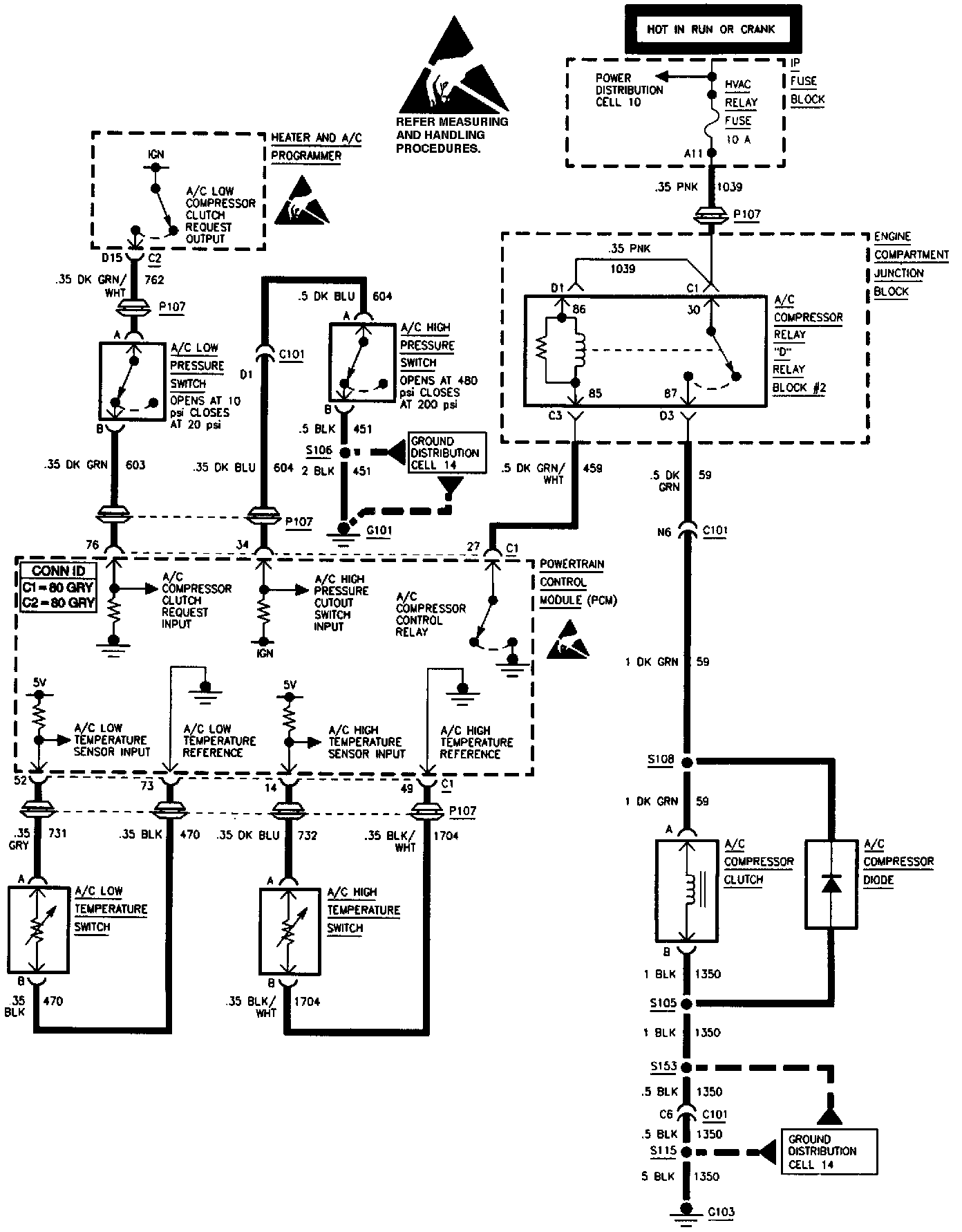

Compressor Controls: Automatic

HVAC: Compressor Controls (Automatic):
