Air Delivery and Temperature Controls: Automatic

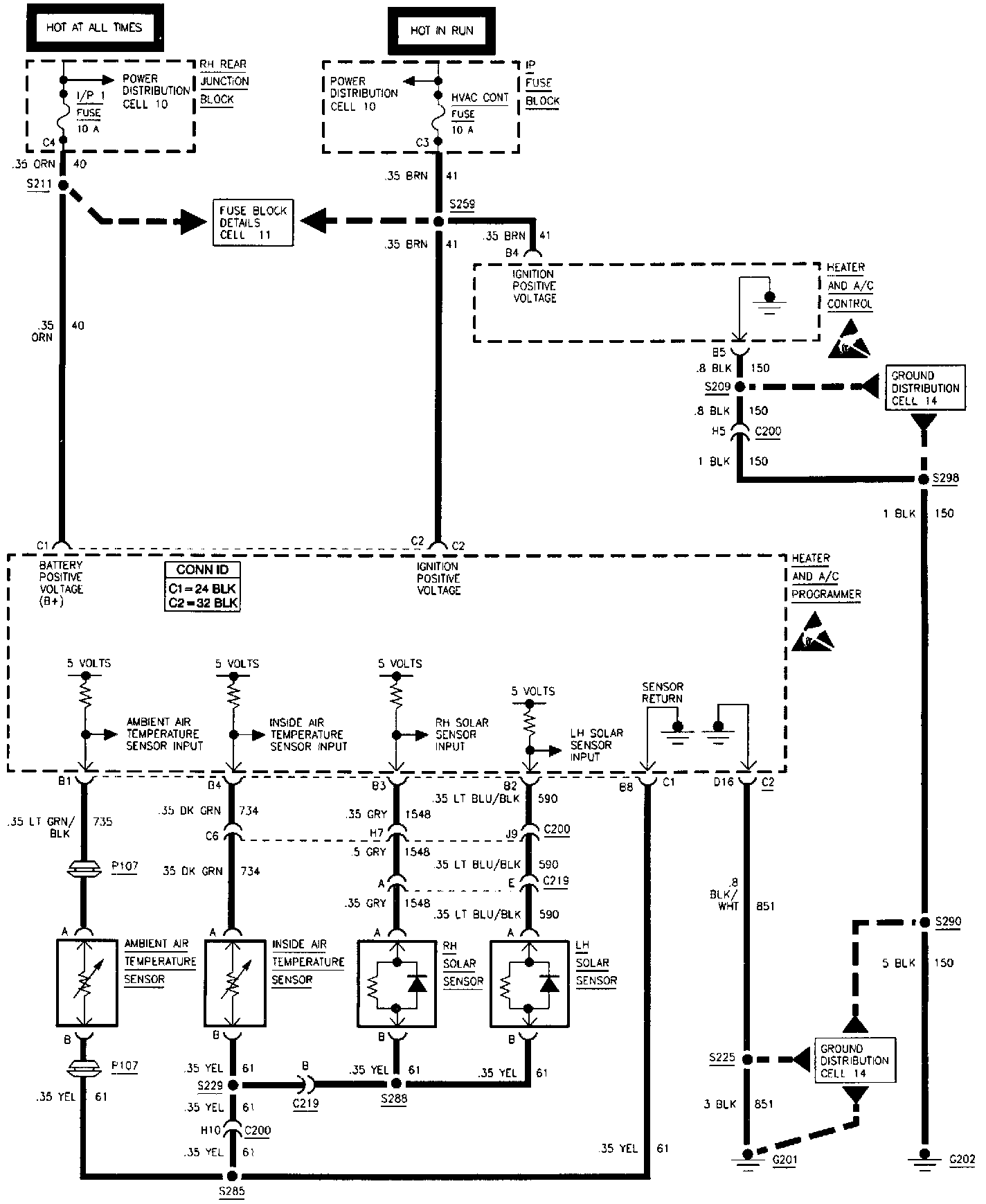

HVAC: Air Delivery And Temperature Controls (Automatic):

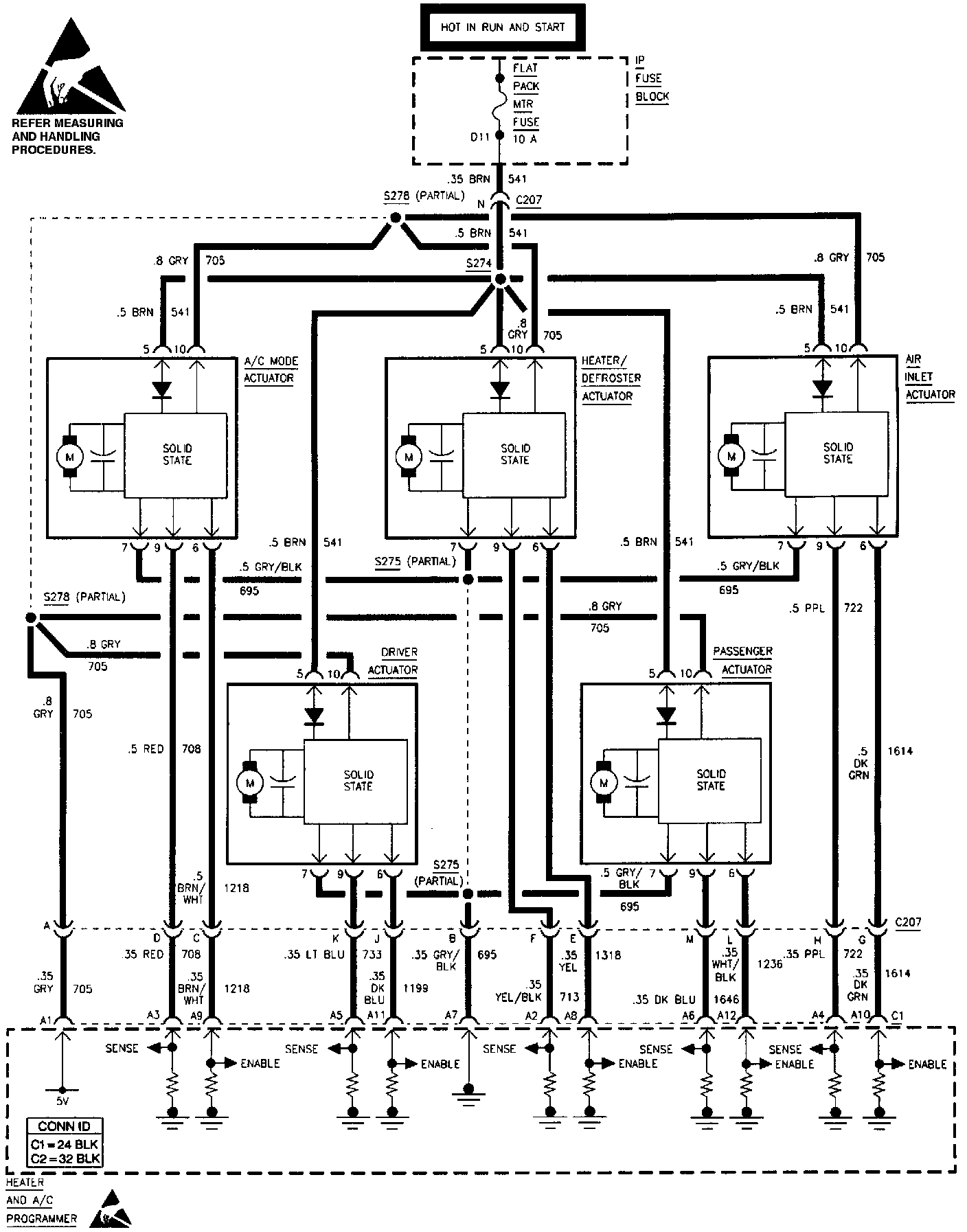

HVAC: Air Delivery And Temperature Controls (Automatic):

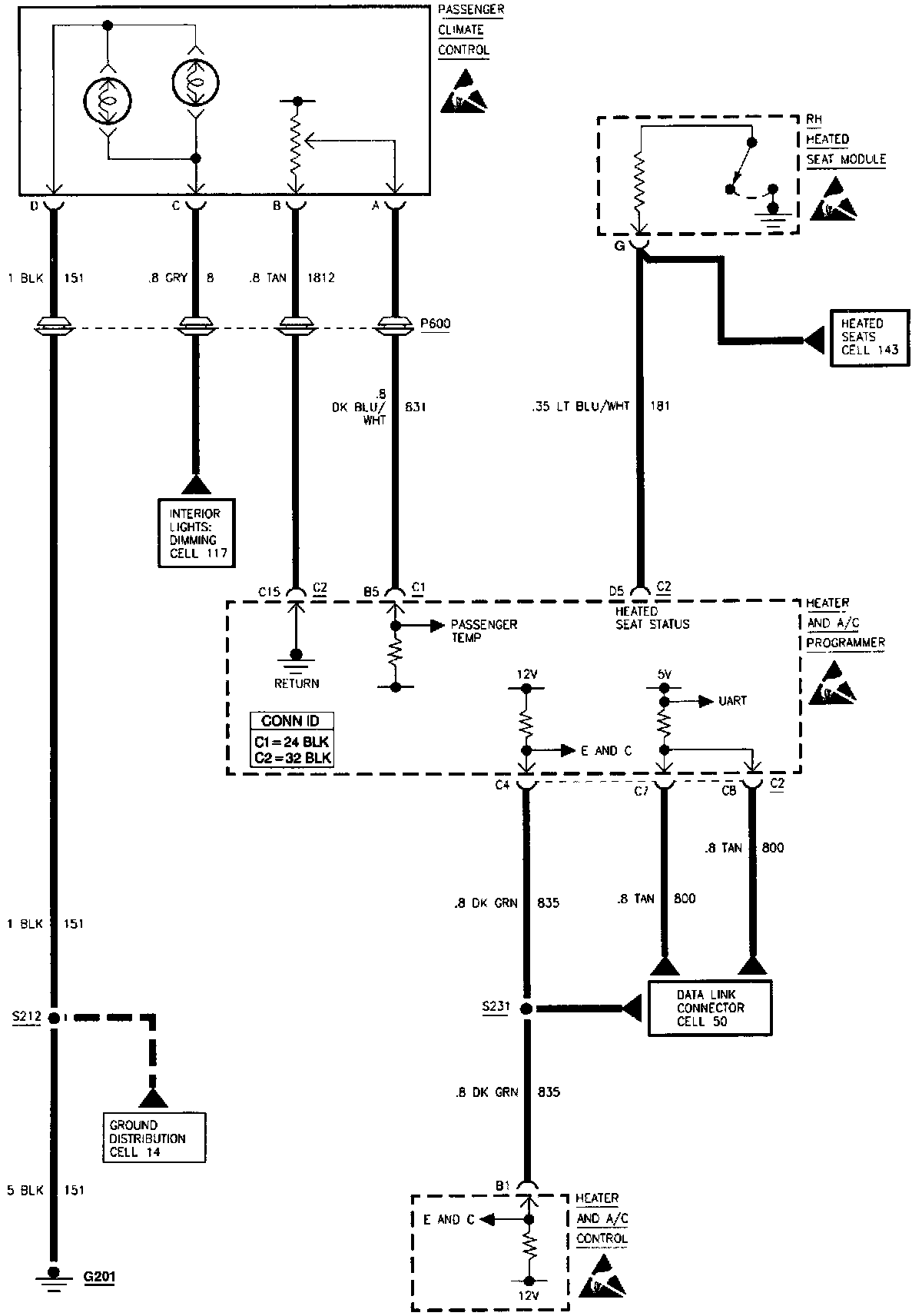

HVAC: Air Delivery And Temperature Controls (Automatic):
