Control Assembly: Service and Repair

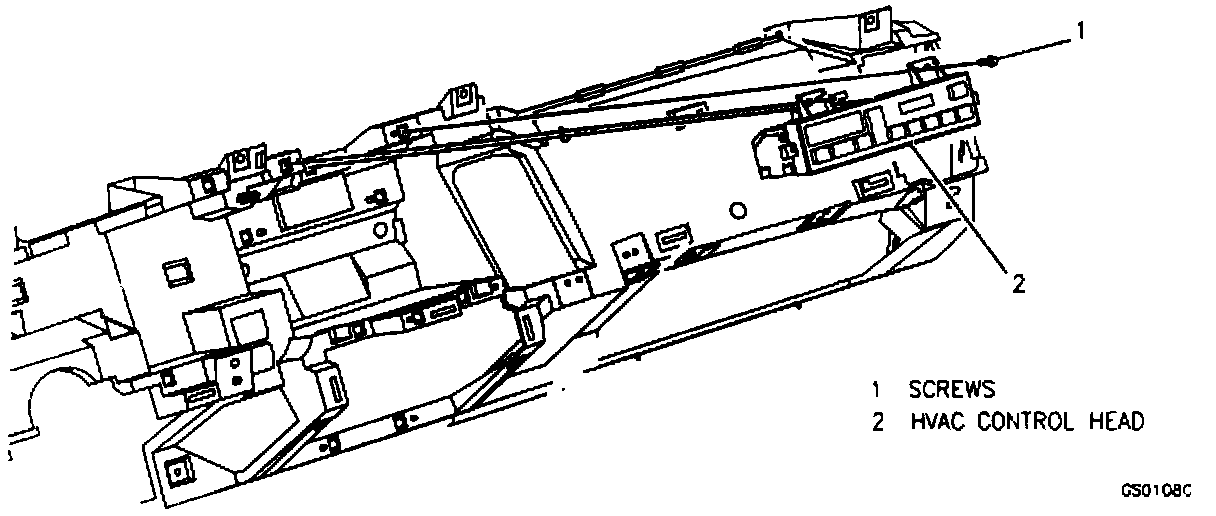

Description:

REMOVE OR DISCONNECT
1. IP upper trim pad.
2. Screws (1).
3. Heater and A/C control (2) from IP assembly.
4. Electrical connectors from heater and A/C control.

INSTALL OR CONNECT
1. Electrical connectors to control head.
2. Control head to IP assembly.
3. Screws (1).
4. IP upper trim pad.
