Water Crossover Removal

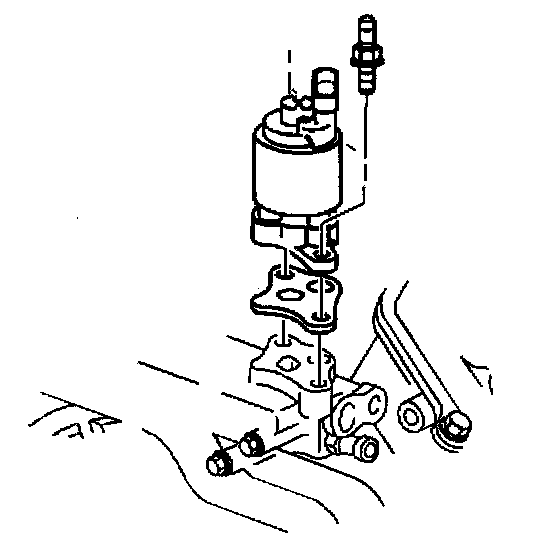

1. Remove the EGR valve bolts.
2. Remove the EGR valve and the gasket.

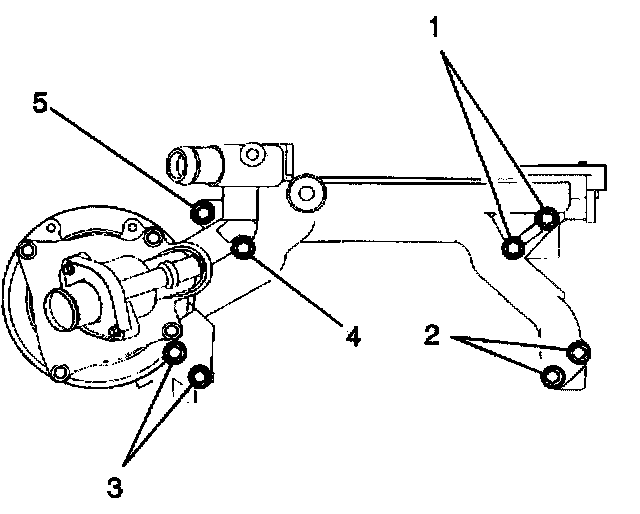

3. Loosen the water crossover mounting bolts (1 - 5).





4. Remove the water crossover and all mounting bolts.

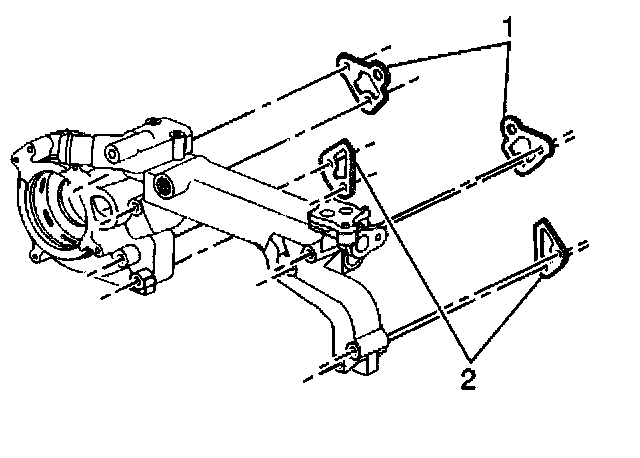

5. Remove the upper (1) and lower (2) water crossover gaskets. Do not damage the water crossover gaskets. These gaskets are reusable.
