Starter Motor Installation

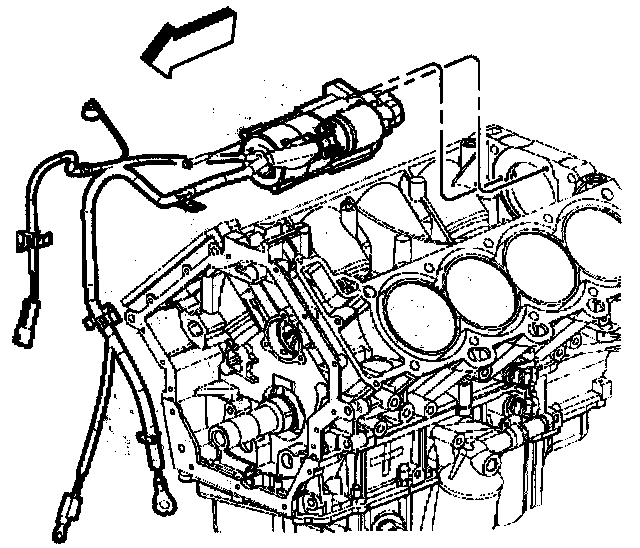

1. Place the starter motor in position in the engine valley.
2. Install the two starter motor retaining bolts.
^ Tighten the starter motor retaining bolts to 30 Nm (22 ft. lbs.).

NOTICE: Refer to Fastener Notice in Service Precautions.

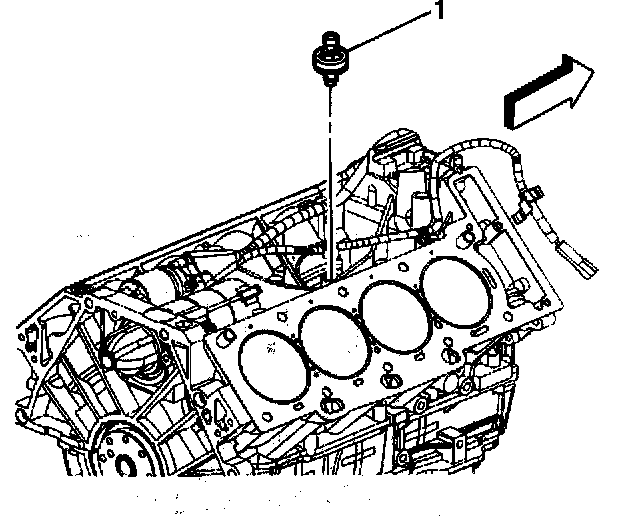

3. Install the knock sensor (1).
^ Tighten the knock sensor to 20 Nm (15 ft. lbs.).

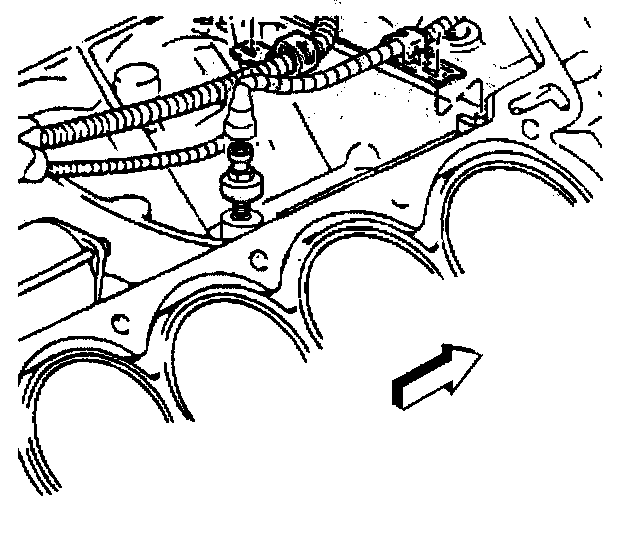

4. Connect the knock sensor wire lead.
