Exhaust Manifold Removal (Right)

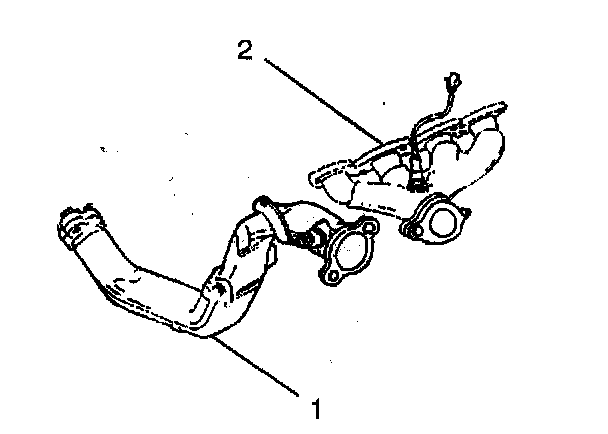

1. Disconnect and remove the exhaust crossover pipe (1).





2. Remove the right exhaust manifold retaining bolts.
3. Remove the exhaust manifold and the gasket. Do not reuse the gasket.
4. Remove the oxygen sensor and inspect the sensor for excessive deposits or damage. Replace the oxygen sensor if necessary.
