Exhaust Manifold Removal (Left)

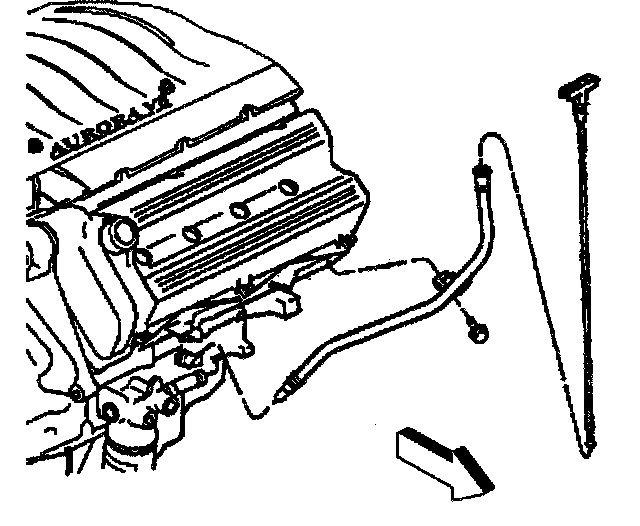

1. Remove the oil level indicator.
2. Remove the oil level indicator tube retaining bolt.
3. Remove the oil level indicator tube.

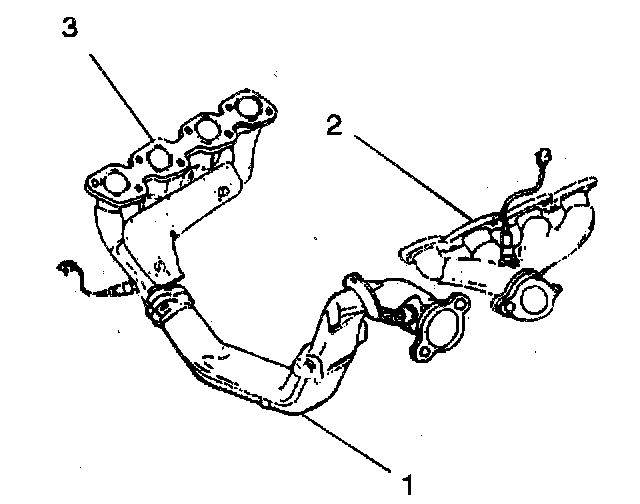

4. Disconnect the left exhaust manifold (3) from the crossover pipe (1).

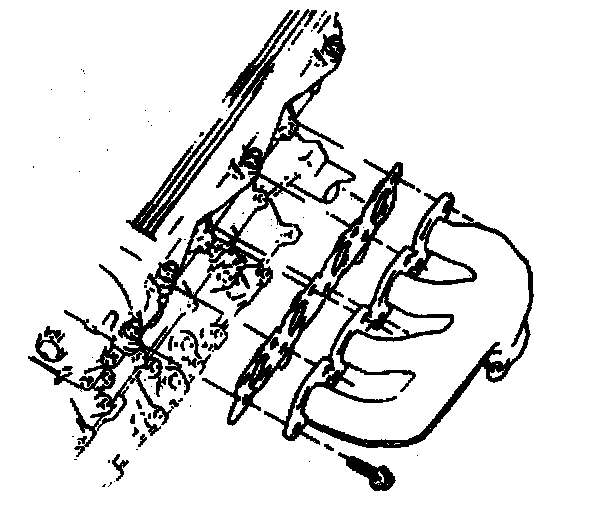

5. Remove the exhaust manifold bolts.
6. Remove the exhaust manifold and the gasket. Do not reuse the gasket.
7. Remove the oxygen sensor and inspect the sensor for excessive deposits or damage. Replace the oxygen sensor if necessary.
