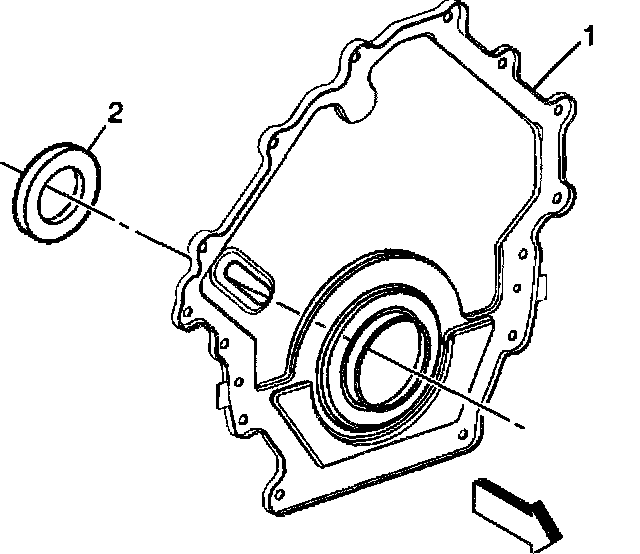

Engine Front Cover Installation

1. Place a small amount of RTV sealant at the split line of the upper and lower crankcases.
2. Place the front cover gasket over the crankcase dowel pins.
3. Place the front cover in position on the crankcase.
4. Install the front cover retaining bolts.
^ Tighten the front cover retaining bolts to 10 Nm (89 inch lbs.).

NOTICE: Refer to Fastener Notice in Service Precautions.
