Cylinder Head Disassemble

^ Tools Required
- J 8062 Valve Spring Compressor
- J 38821 Valve Spring Compressor Adapter
- J 38819 Valve Keeper Installer
- J 38820 Valve Stem Seal Installer

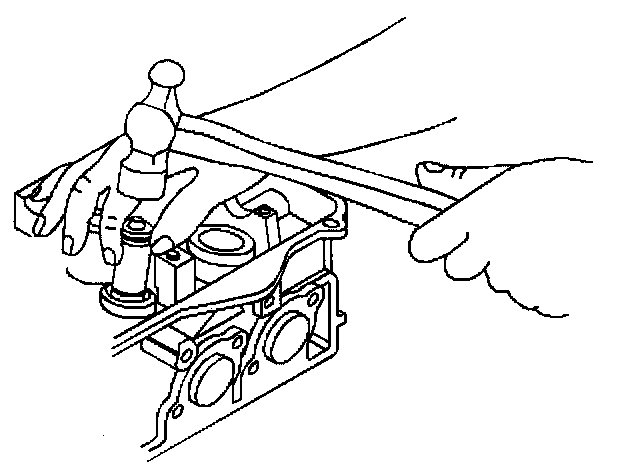

1. Using an appropriately sized deep socket and a plastic hammer, lightly tap on the valve spring retainer in order to loosen the valve keepers.

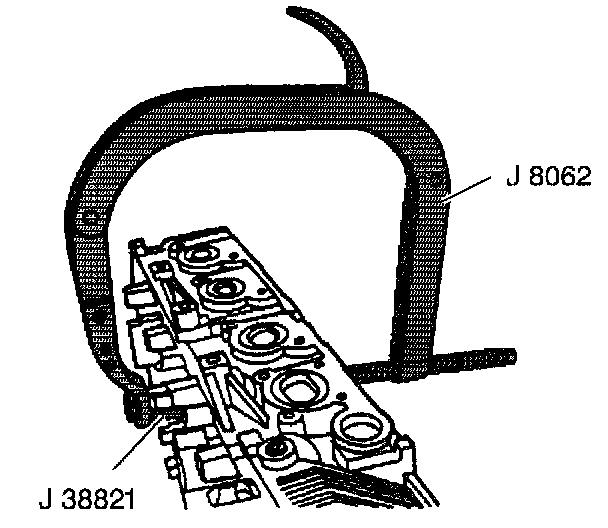

2. Compress the valve spring with the J 8062 and the J 38821.

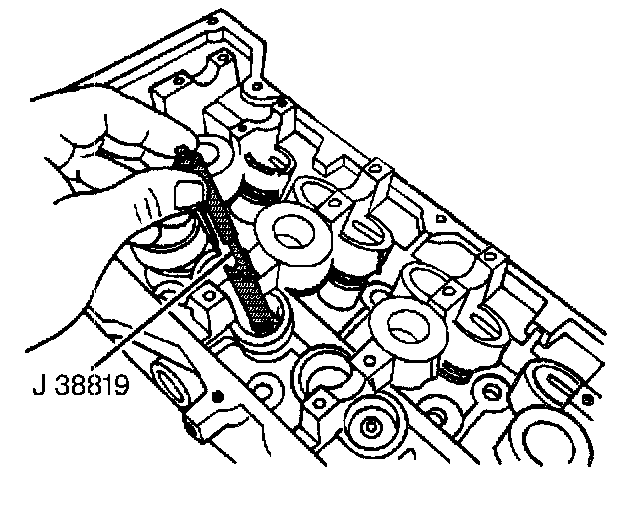

3. Use the magnetic end of the J 38819 in order to remove the valve keepers.





4. Remove the valve spring compressor and the pilot.
5. Remove the valve spring.





6. Remove the valve seal. Use the J 38820.
7. Remove the valve.
8. Repeat the procedure for the remaining valves.
