Crankshaft Balancer Removal

^ Tools Required
- J 39411 Flywheel Holder
- J 38416 Harmonic Balancer Remover
- J 39344 Harmonic Balancer Installer





1. Secure the flywheel in order to prevent crankshaft rotation. Use the J 39411.
2. Remove the crankshaft balancer bolt.
3. Place the J 39344 in the end of the crankshaft.

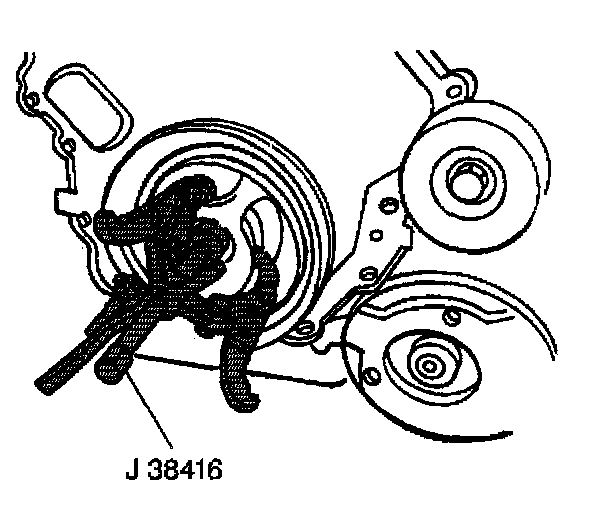

4. Position the ends of the legs of the J 38416 onto the backside of the balancer inner hub.
5. Tighten the center screw on the puller until the balancer pulls clear of the crankshaft end.
6. Remove the crankshaft balancer.
