Crankshaft Balancer Installation

^ Tools Required

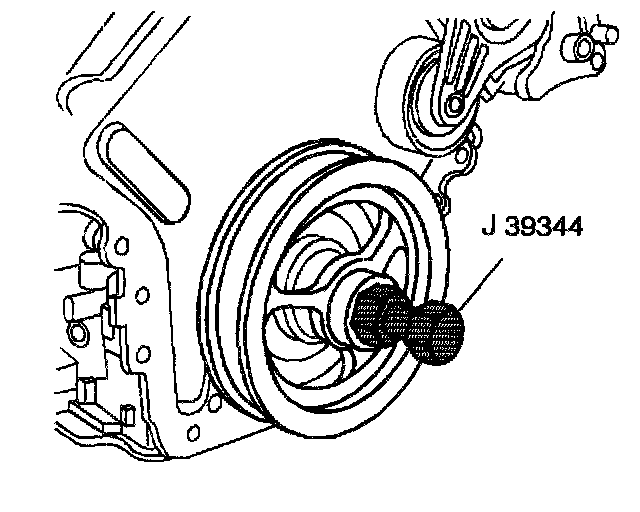

- J 39344 Crankshaft Balancer Installer

1. Position the crankshaft balancer on the nose of the crankshaft.





2. Install the balancer using the J 39344.
3. Clean the balancer bolt threads.
4. Apply engine oil to the balancer bolt threads.
5. Install the balancer bolt.
^ Tighten the crankshaft balancer bolt to 50 Nm + 120° (37 ft. lbs. + 120°).

NOTICE: Refer to Fastener Notice in Service Precautions.

6. Use the balancer legs as a reference for the additional 120° of rotation. Make a mark on the balancer bolt flange in line with the centerline of one balancer spoke. Turn to the next spoke.
