Camshaft Cover Installation (Right)

1. Install new spark plugs if required.
2. Install new camshaft cover seals if required.

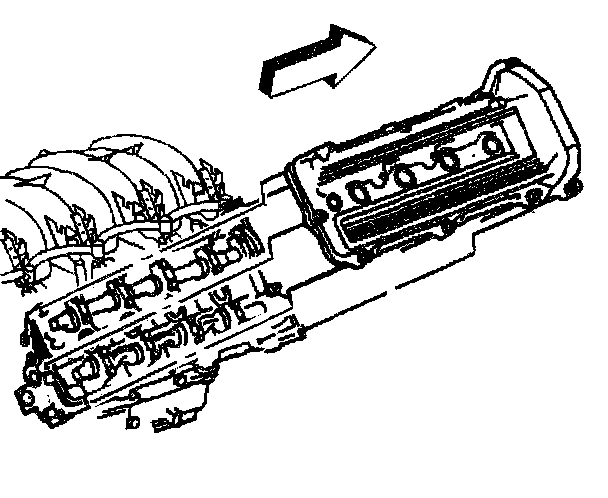

3. Place the right camshaft cover in position on the cylinder head by aligning the bolt holes.
4. Install the camshaft cover bolts.
^ Tighten the camshaft cover bolts to 10 Nm (89 inch lbs.).

NOTICE: Refer to Fastener Notice in Service Precautions.

5. Install the canister purge solenoid.
6. Install the canister purge retaining bolt.
^ Tighten the canister purge retaining bolt to 12 Nm (106 inch lbs.).
