Accessory Removal

POWER STEERING PUMP

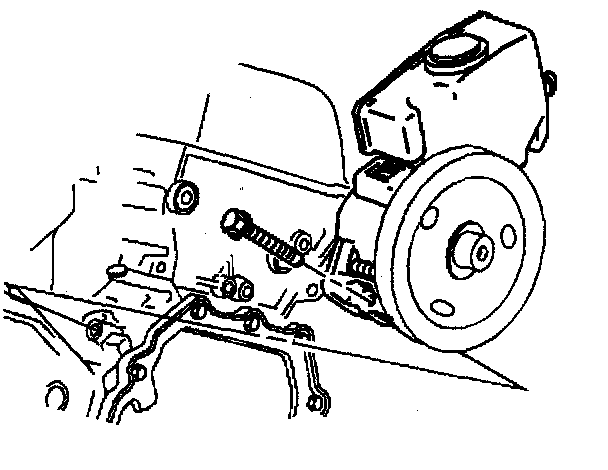

1. Remove the power steering pump retaining bolt. The bolt is located perpendicular to the crankshaft centerline and behind the power steering pulley.
2. Remove the power steering pump.

GENERATOR

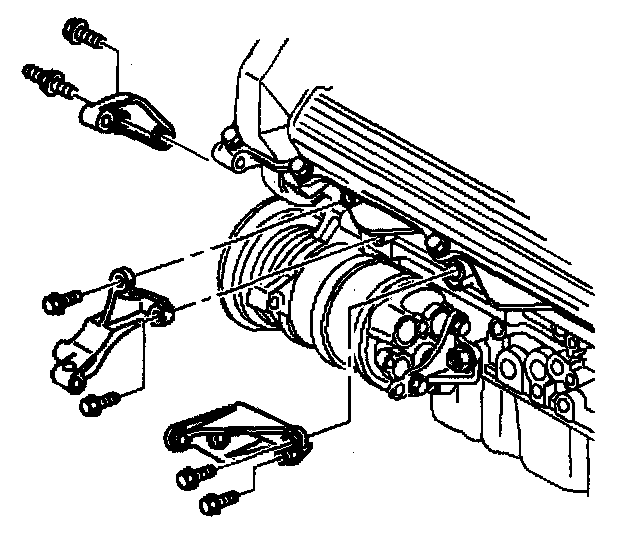

1. Remove the generator retaining bolts located at the front and rear of the generator.
2. Remove the generator.

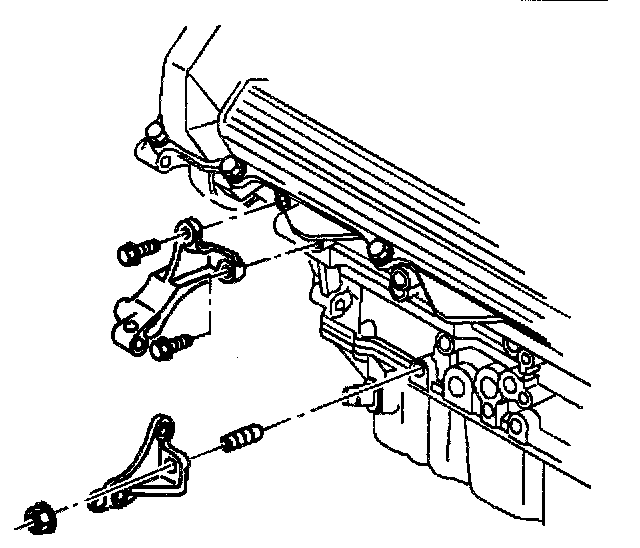

3. Remove the rear generator mounting bracket retaining bolts.
4. Remove the rear generator mounting bracket.

AIR CONDITIONING COMPRESSOR

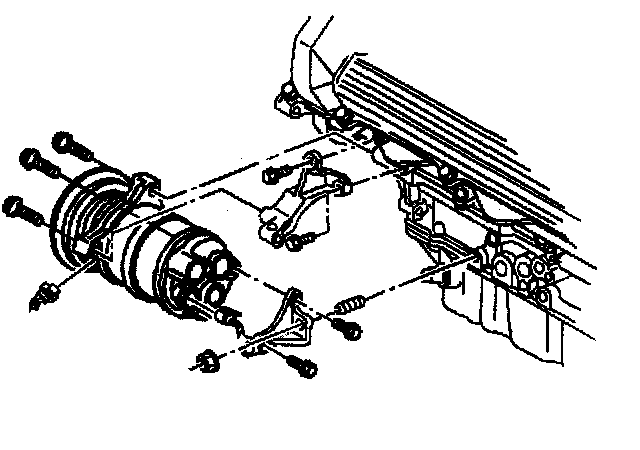

1. Remove the five air conditioning compressor mounting bolts. Three bolts are located at the front of the compressor. Two bolts are located at the rear of the compressor.
2. Remove the air conditioning compressor.





3. Remove the air conditioning compressor mounting bracket bolt.
4. Remove the air conditioning compressor mounting bracket.
