Accessory Installation

AIR CONDITIONING COMPRESSOR

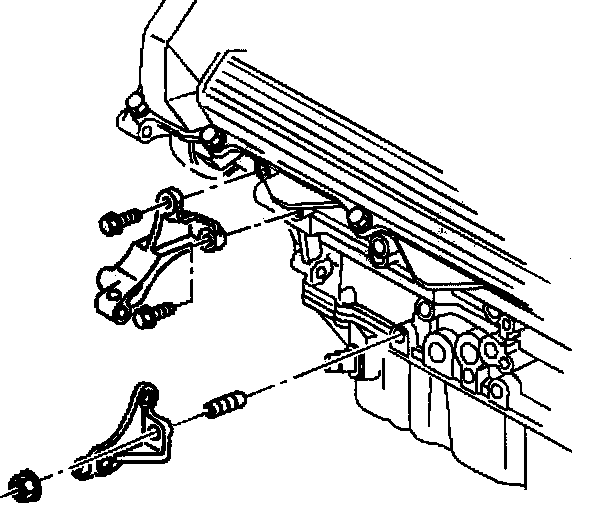

1. Install the air conditioning compressor bracket.
2. Install the air conditioning compressor bracket retaining nut.
^ Tighten the air conditioning compressor bracket nut to 30 Nm (22 ft. lbs.).

NOTICE: Refer to Fastener Notice in Service Precautions.

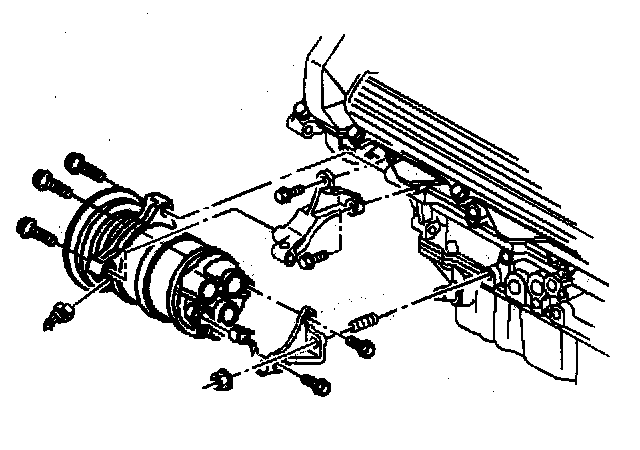

3. Position the air conditioning compressor on the cylinder block.
4. Install the front and rear retaining bolts.
^ Tighten the air conditioning compressor retaining bolts to 50 Nm (37 ft. lbs.).

GENERATOR

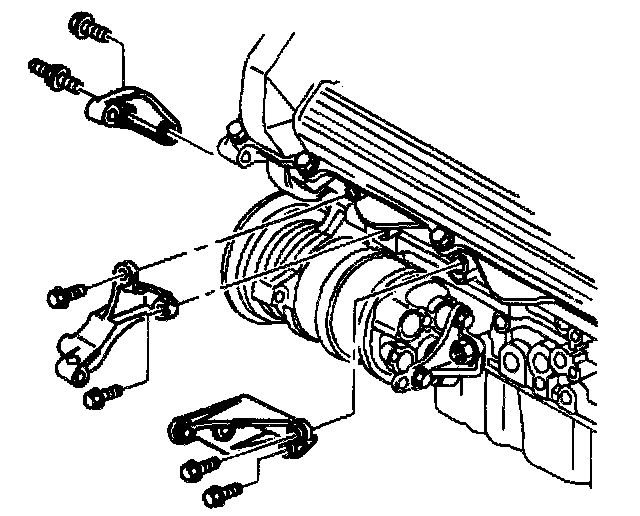

1. Install the rear generator mounting bracket.
2. Install the rear generator mounting bracket bolt and nut.
^ Tighten the rear generator mounting bracket bolt to 47 Nm (35 ft. lbs.).
^ Tighten the rear generator mounting bracket nut to 38 Nm (28 ft. lbs.).

NOTICE: Refer to Fastener Notice in Service Precautions.

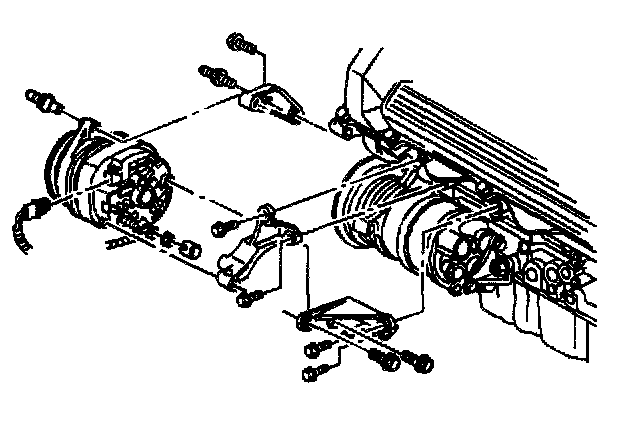

3. Install the generator.
4. Install the generator retaining bolts.
^ Tighten the generator retaining bolts to 50 Nm (37 ft. lbs.).

POWER STEERING PUMP

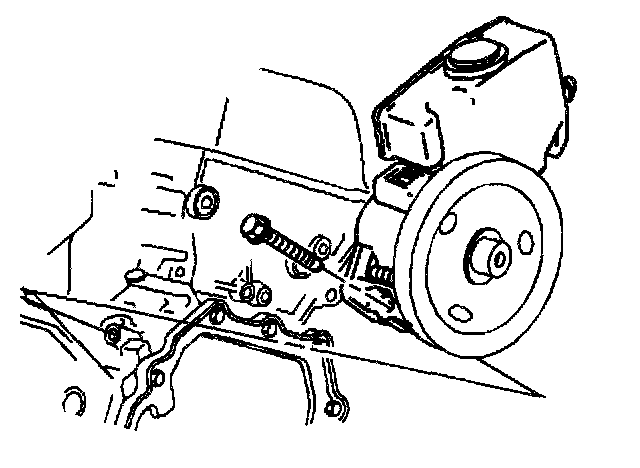

1. Place the power steering pump in position in the engine valley. Slide the molded wedge into the retaining feature cast into the cylinder block.
2. Install the power steering pump retaining bolt.
^ Tighten the power steering pump retaining bolt to 50 Nm (37 ft. lbs.).

NOTICE: Refer to Fastener Notice in Service Precautions.
