Oil Pick Up/Strainer: Service and Repair

REMOVAL PROCEDURE
1. Remove the transmission assembly. Refer to Transmission Replacement in Automatic Transmission.

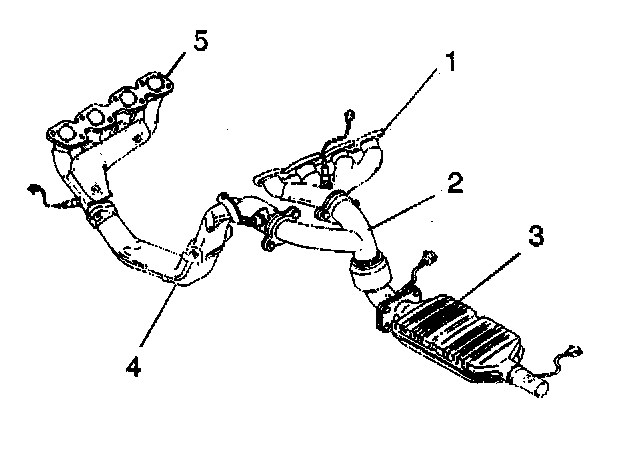

2. Remove the exhaust crossover pipe retaining bolts from the left exhaust manifold (5) flange and the exhaust manifold rear pipe (2).
3. Remove the exhaust cross over pipe (4).
4. Remove the engine oil pan. Refer to Oil Pan Replacement.

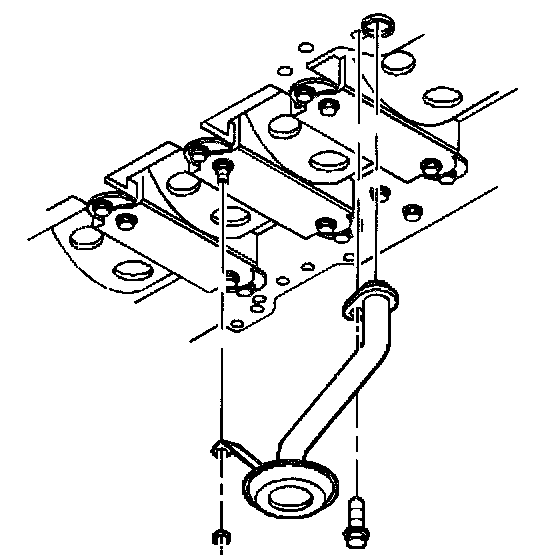

5. Remove the support nut and mounting bolt.
6. Remove the oil pump pickup pipe.

INSTALLATION PROCEDURE
1. Lubricate the pickup seal, located in the oil manifold, with engine oil.

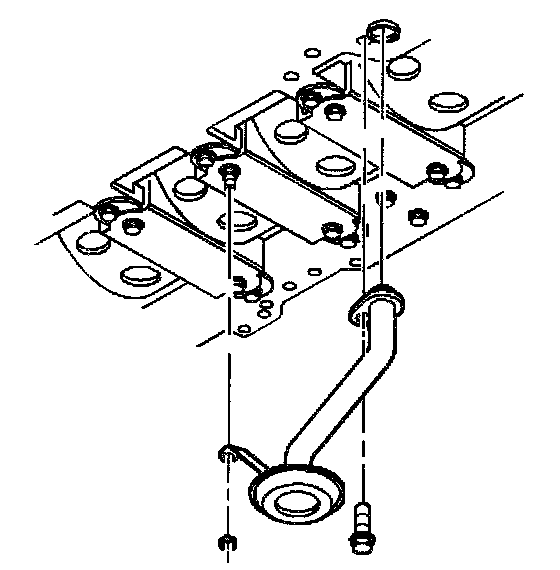

2. Position the oil pump pickup pipe to the lower crankcase.
3. Install the mounting bolt and support nut.
^ Tighten the mounting bolt to 10 Nm (89 inch lbs.).
^ Tighten the support nut to 25 Nm (18 ft. lbs.).

NOTICE: Refer to Fastener Notice in Service Precautions.

4. Install the oil pan. Refer to Oil Pan Replacement.





5. Install the exhaust crossover pipe (4).
6. Install the exhaust crossover retaining bolts into the left exhaust manifold (5) flange and the exhaust manifold rear pipe (2).
^ Tighten the exhaust crossover retaining bolts to 30 Nm (22 ft. lbs.).

7. Install the transmission assembly. Refer to Transmission Replacement in Automatic Transmission.
