Turn LPS Fuse, Flat Pack MTR Fuse, Perimeter LP Fuse
Turn LPS Fuse, Flat Pack MTR Fuse, Perimeter LP Fuse

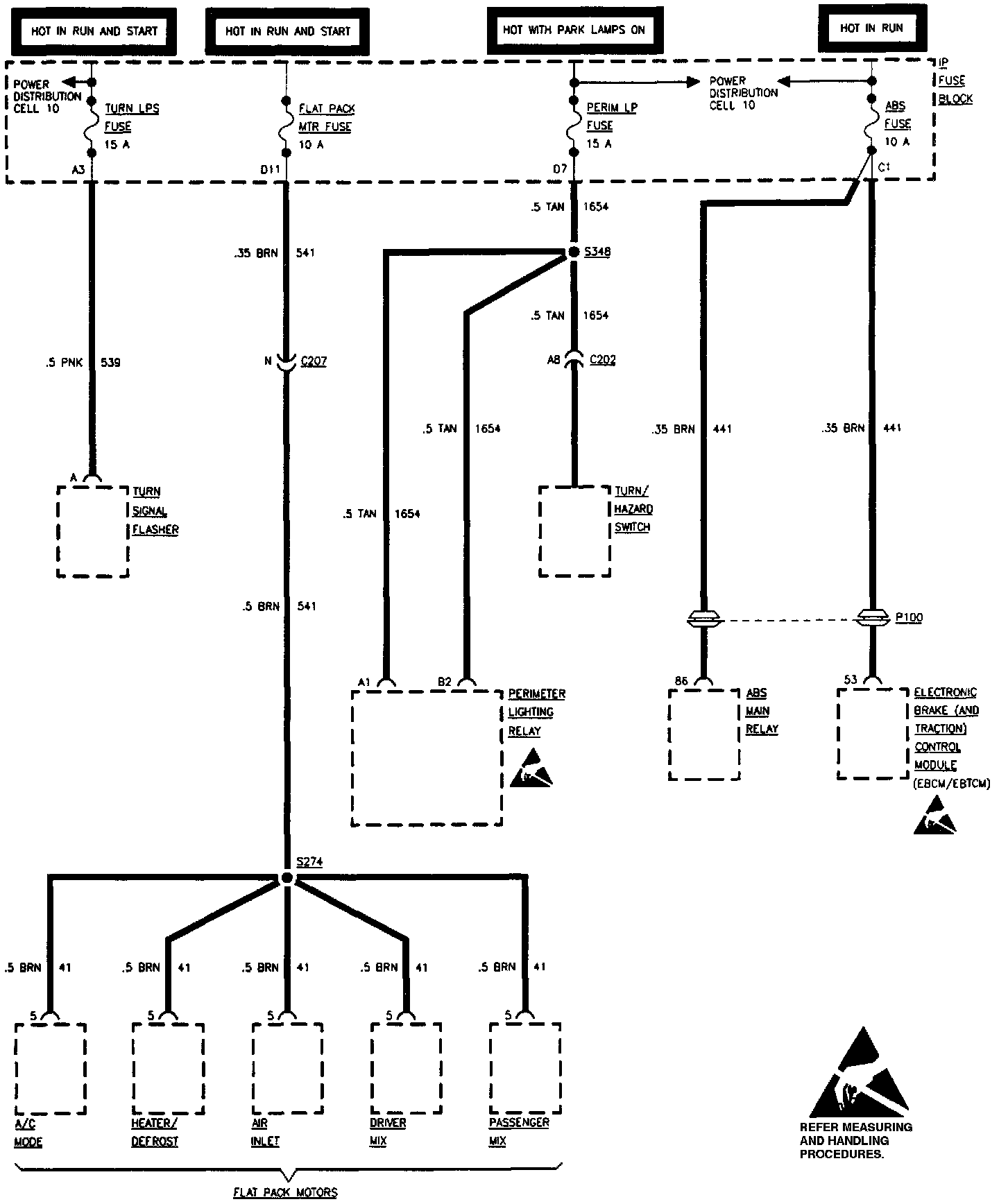

Turn LP Fuse (15 A), Flat Pack MTR Fuse, Perimeter LP Fuse (15 A) And ABS Turn LPS Fuse (15 A), Flat Pack MTR Fuse (10 A), PERIM LP Fuse (15 A) And ABS Fuse (10 A):
