PCM Fuse, DIS Fuse & Fog Lamp Fuse
PCM Fuse, DIS Fuse & Fog Lamp Fuse

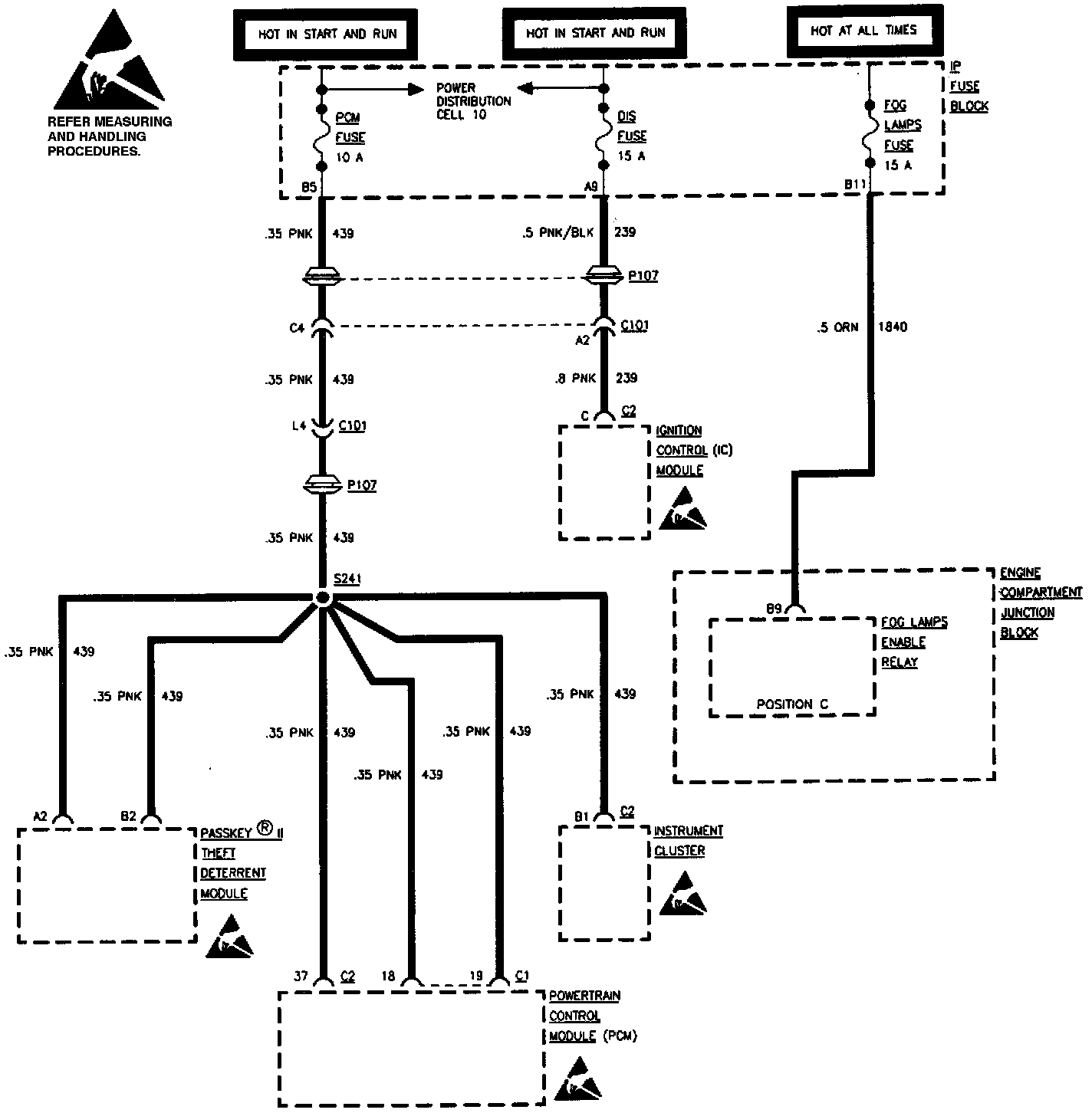

PCM Fuse (10 A), DIS Fuse (15 A) And Fog Lamps Fuse (15 A):
