Instrument Panel (I/P) Fuse Block - Fuses
Instrument Panel (I/P) Fuse Block - Fuses

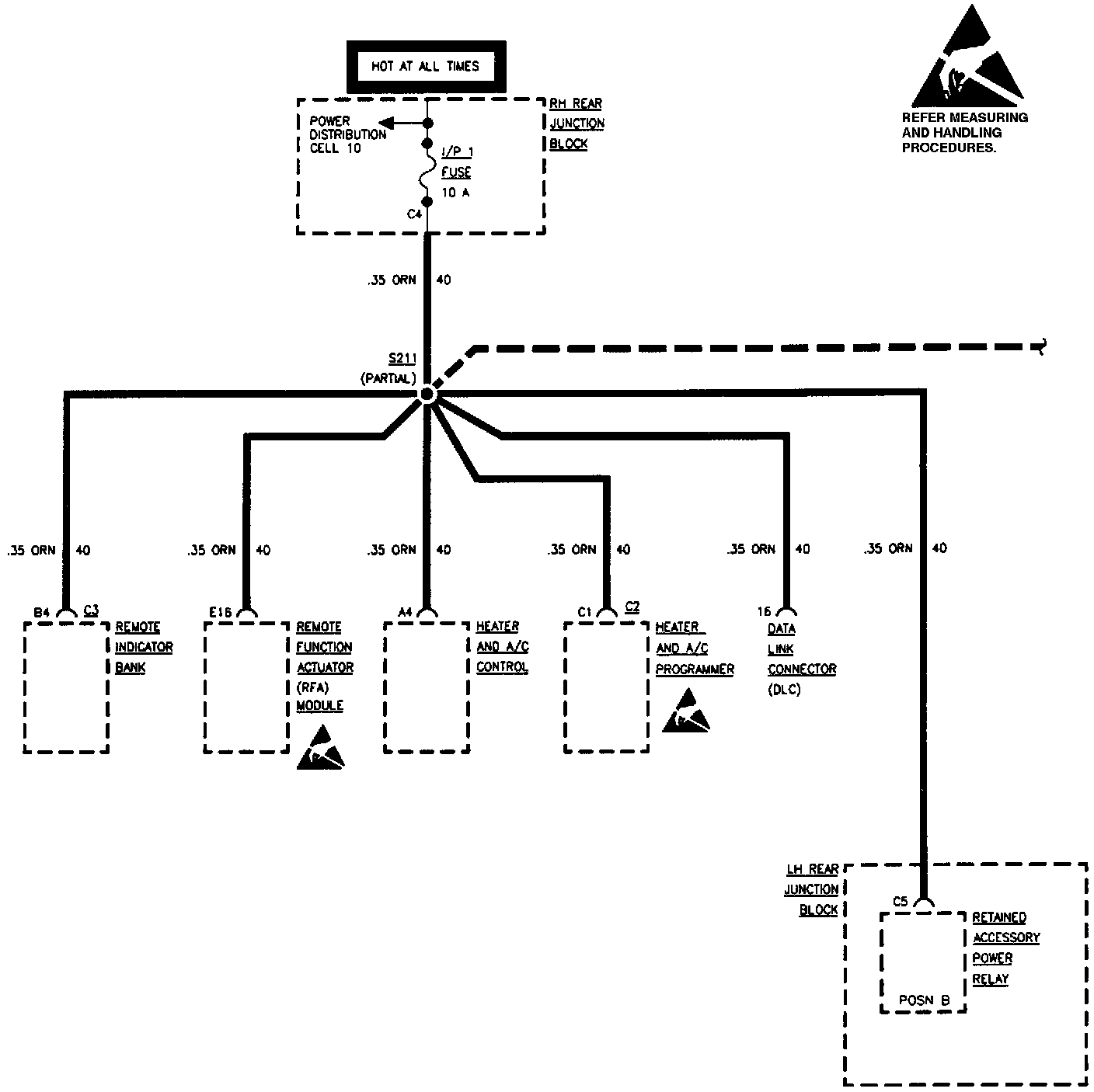

I/P 1 Fuse (10 A) (Part 1 Of 2):

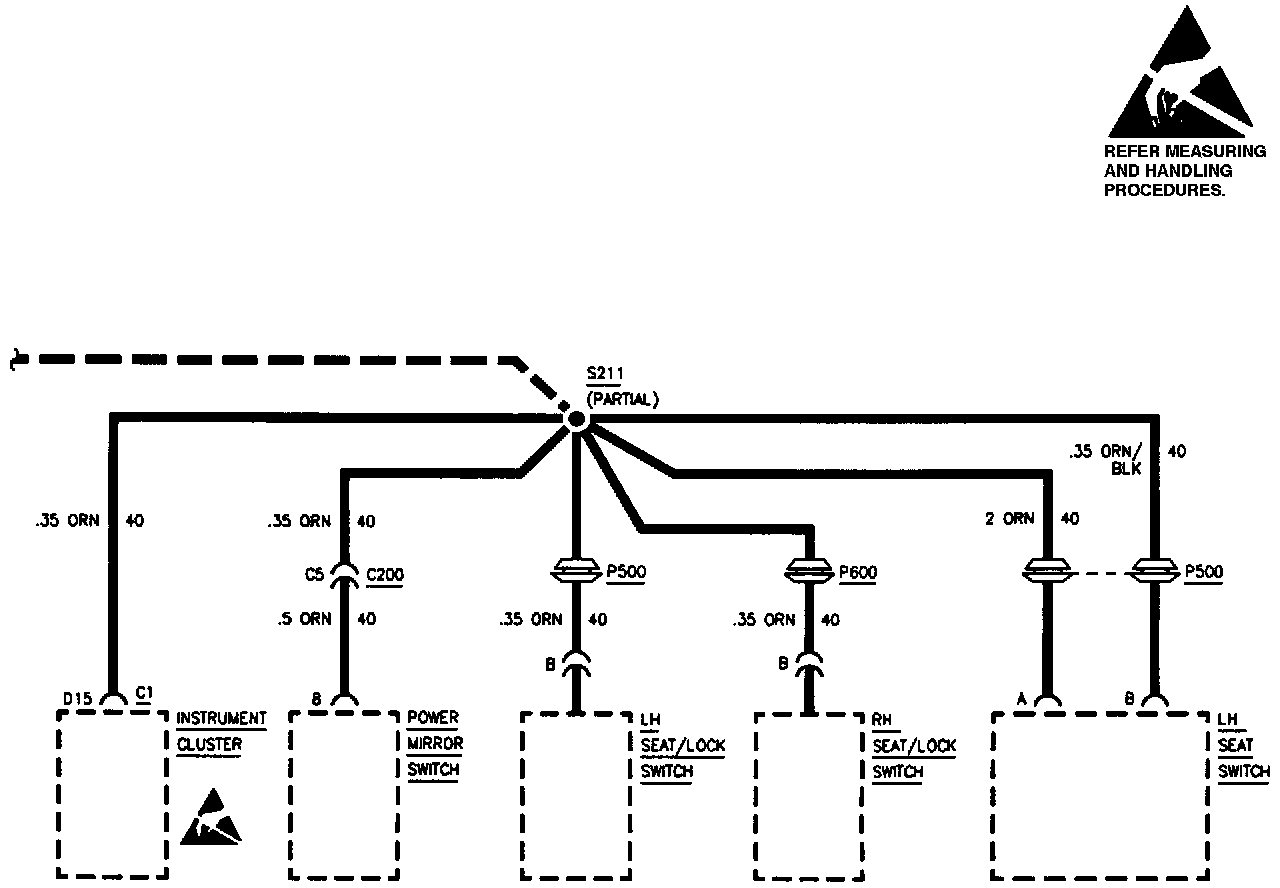

I/P 1 Fuse (10 A) (Part 2 Of 2):
