HDLP Circuit Breaker, HVAC Blower MTR Fuse, PWR Seat Fuse
HDLP Circuit Breaker, HVAC Blower MTR Fuse, PWR Seat Fuse

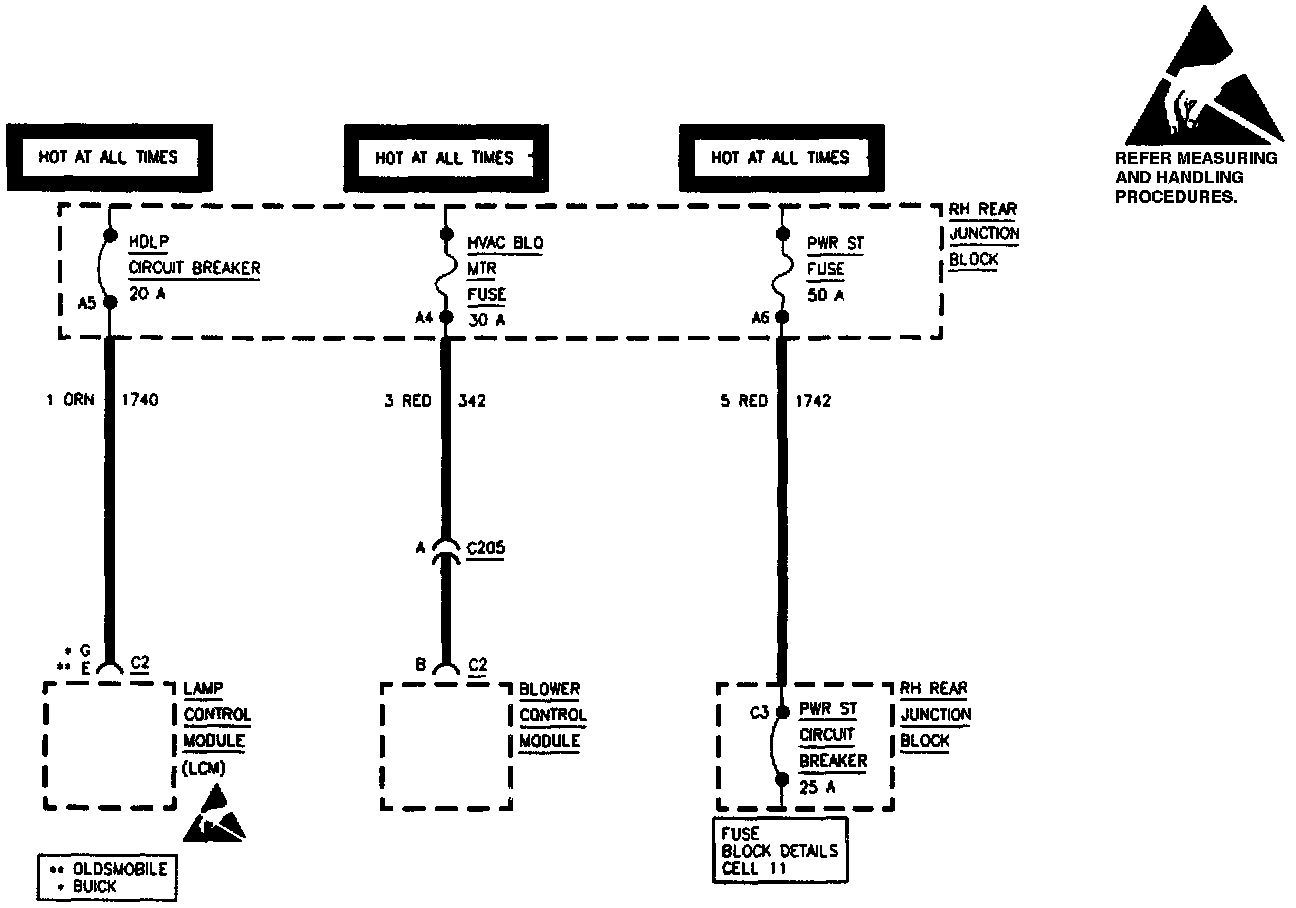

HDLP CKT Breaker (20 A), HVAC BLO MTR Fuse (30 A) And PWR ST Fuse (50 A):
