C/LTR Fuse, C/LTR Fuse And TMNSS Fuse
C/LTR Fuse, C/LTR Fuse And TMNSS Fuse

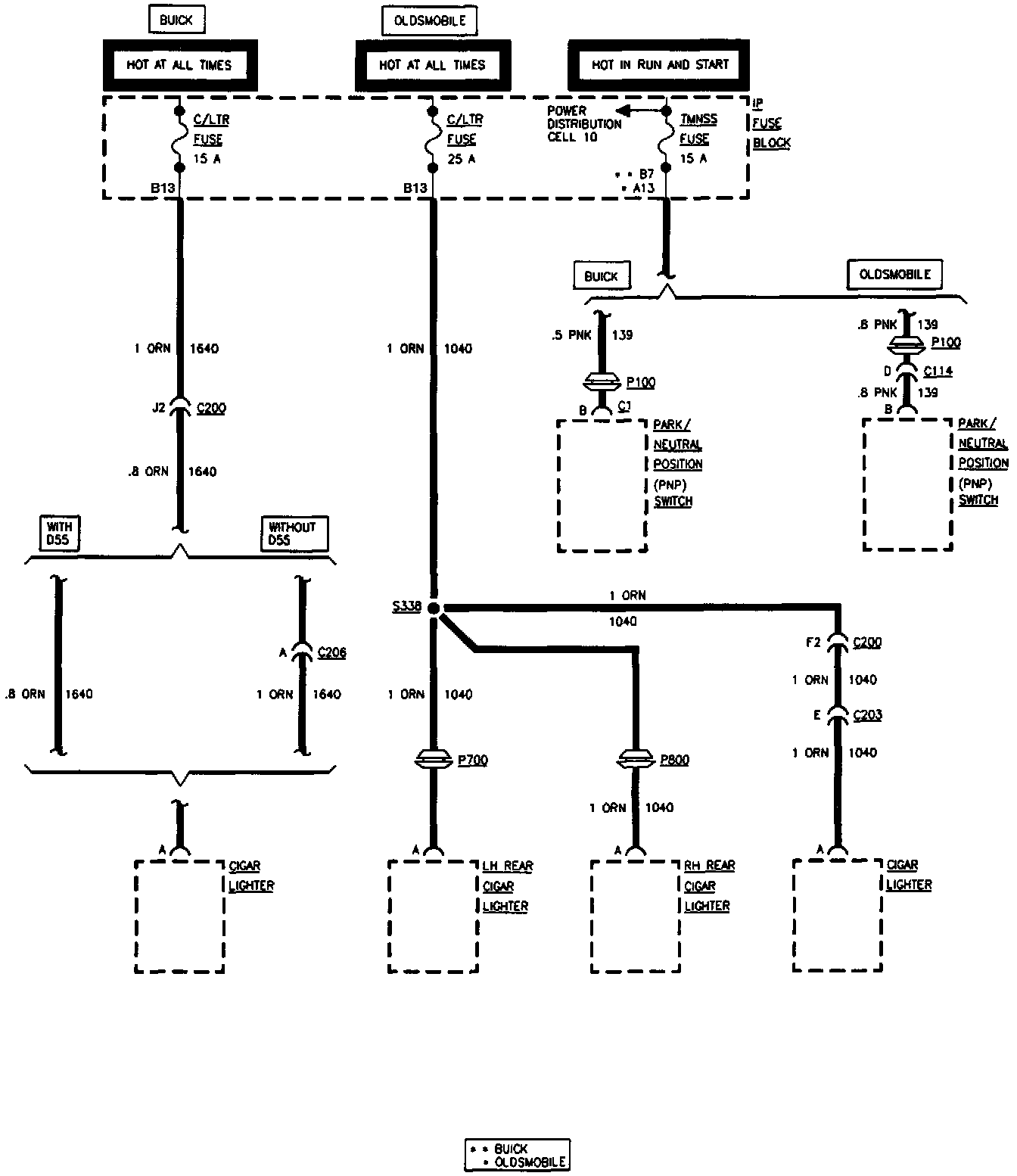

C/LTR Fuse (15 A), C/LTR Fuse (25 A) And TMNSS Fuse (15 A):
