Home
>>
Oldsmobile
>>
1998
>>
Aurora V8-4.0L VIN C
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Radio, Stereo, and Compact Disc
>>
System Diagram
>>
Delco Bose (U1F)
Delco Bose (U1F)

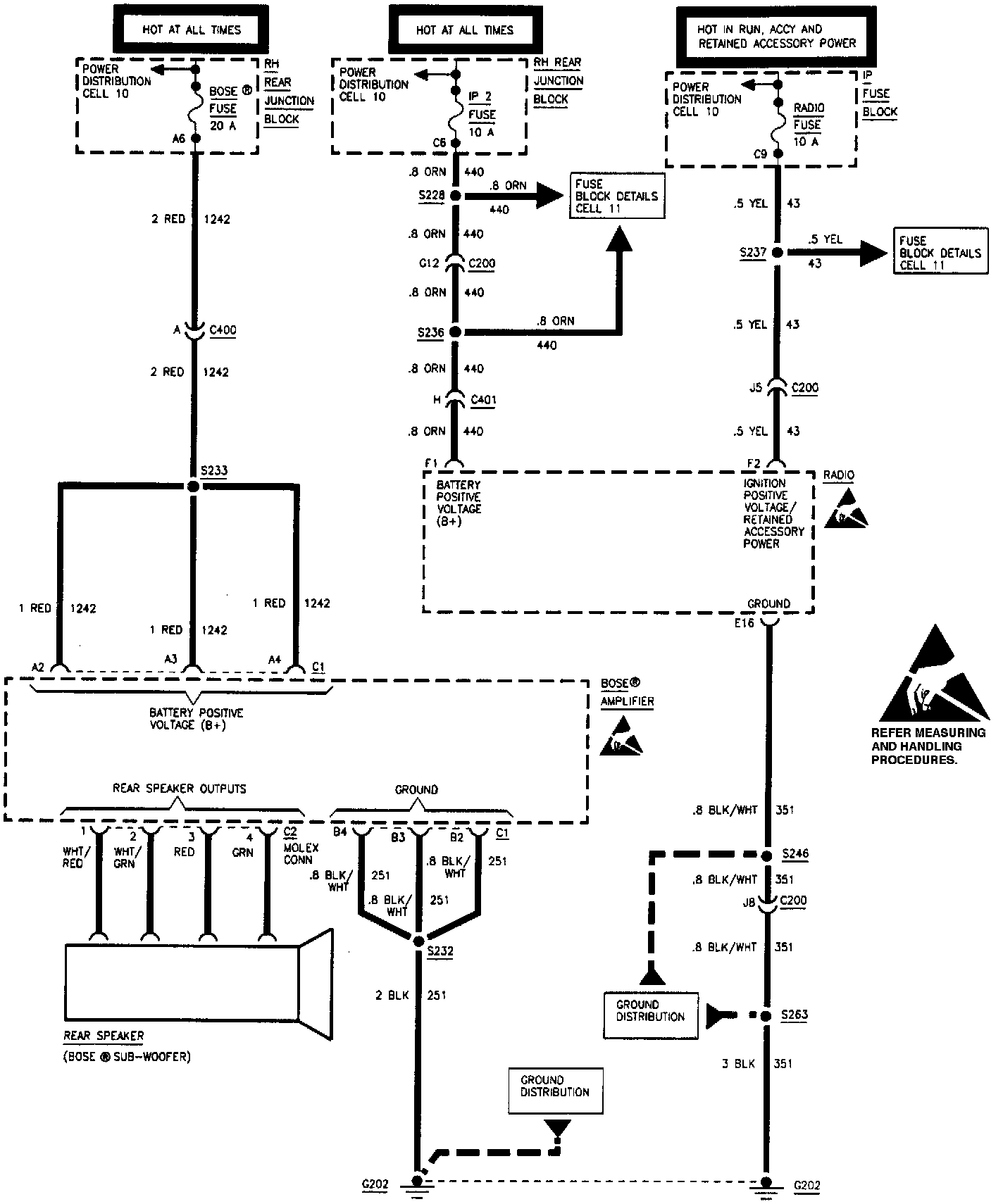

Audio Systems: Delco-Bose(R) (Part 1 Of 2):
Audio Systems: Delco-Bose(R) (Part 2 Of 2):
