Home >> Oldsmobile >> 1998 >> Aurora V8-4.0L VIN C >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> Computers and Control Systems >> Body Control Module >> Power, Ground And Vehicle Speed Input

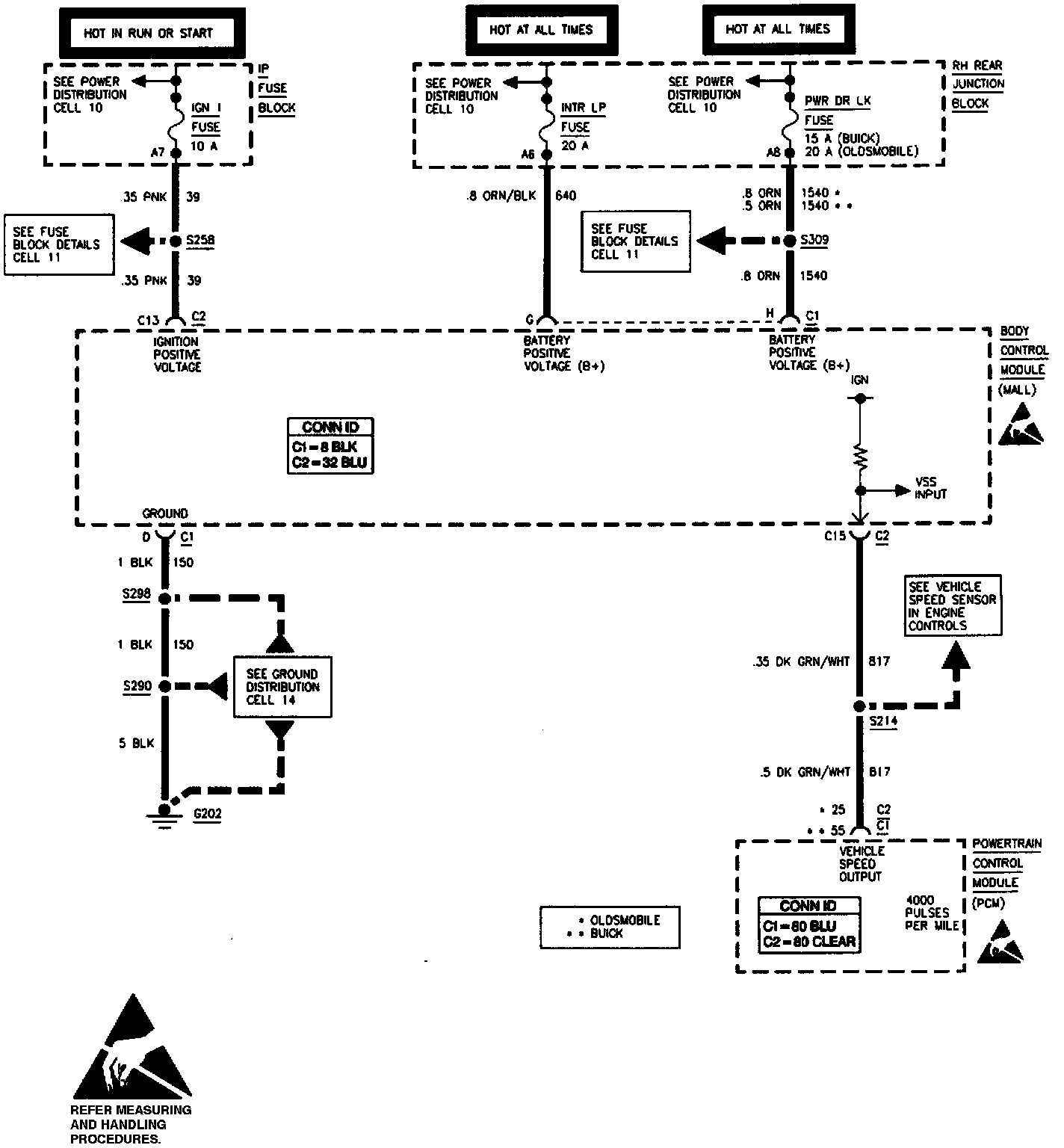

Power, Ground And Vehicle Speed Input

Power, Ground And Vehicle Speed Input:
