Headlamp
Headlamps And High Beam Indicator:

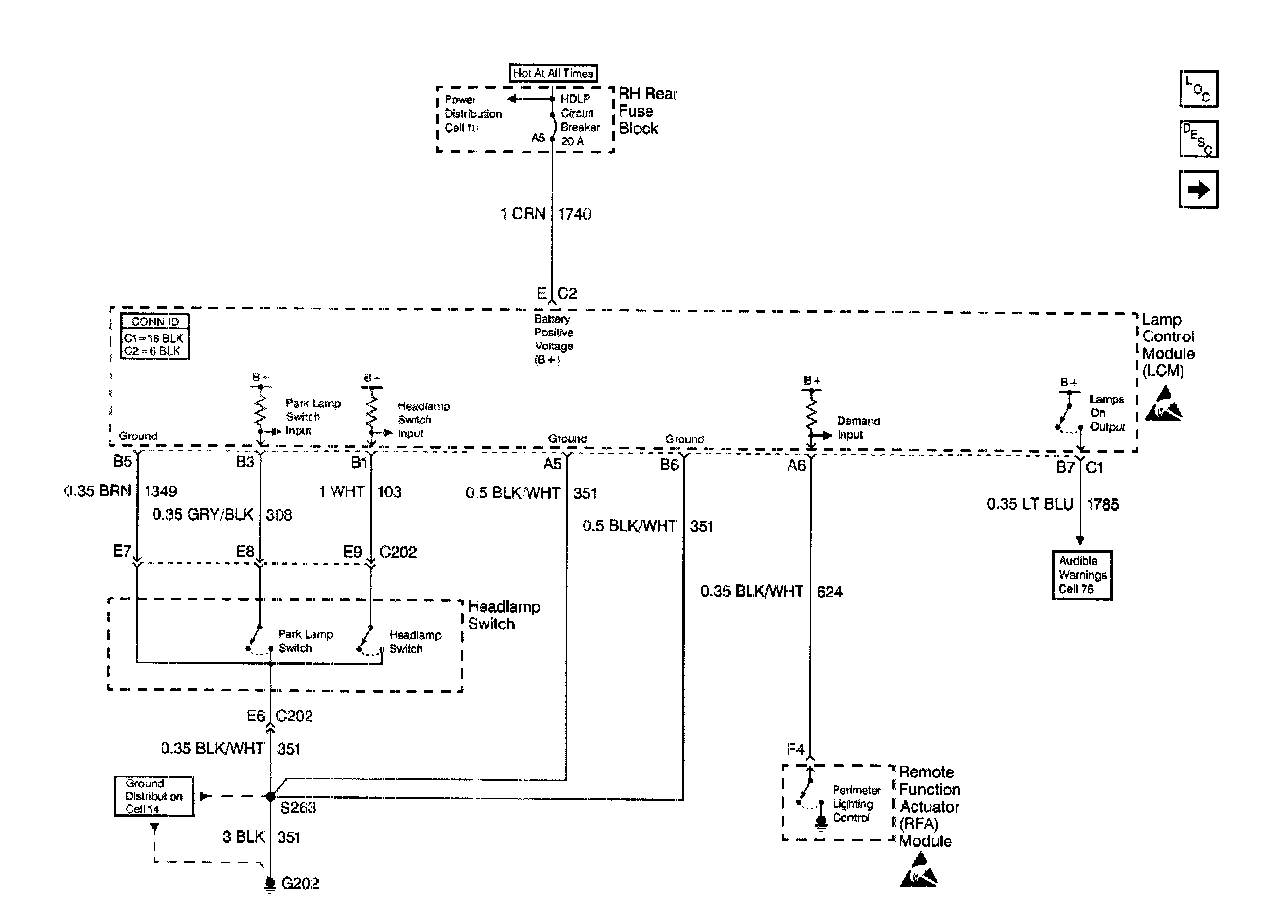

PWR, GND, Headlamp Switch, RFA, And Lamps On Output:

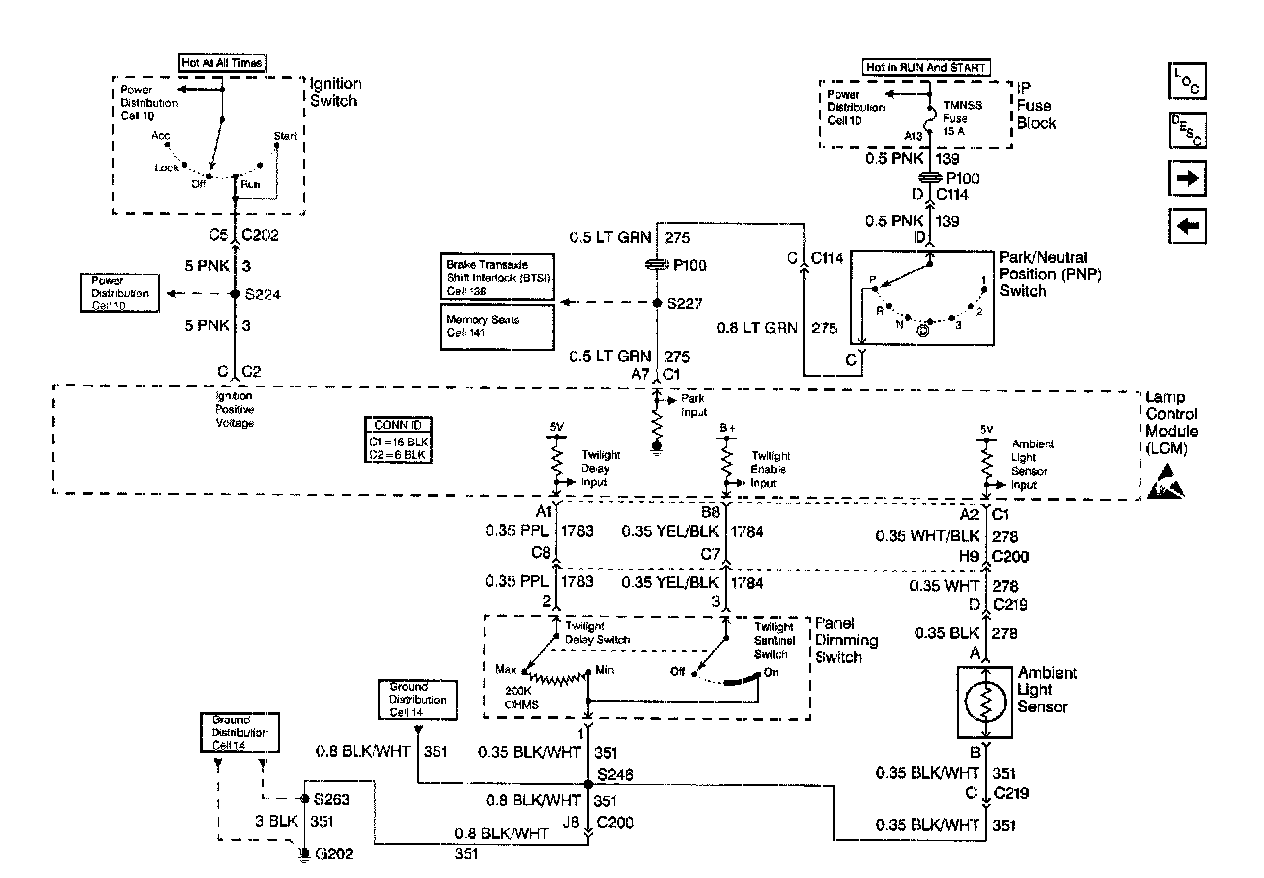

Ignition And Park Inputs, Twilight Delay And Ambient Light Sensor:
