Pass-Key(R) II

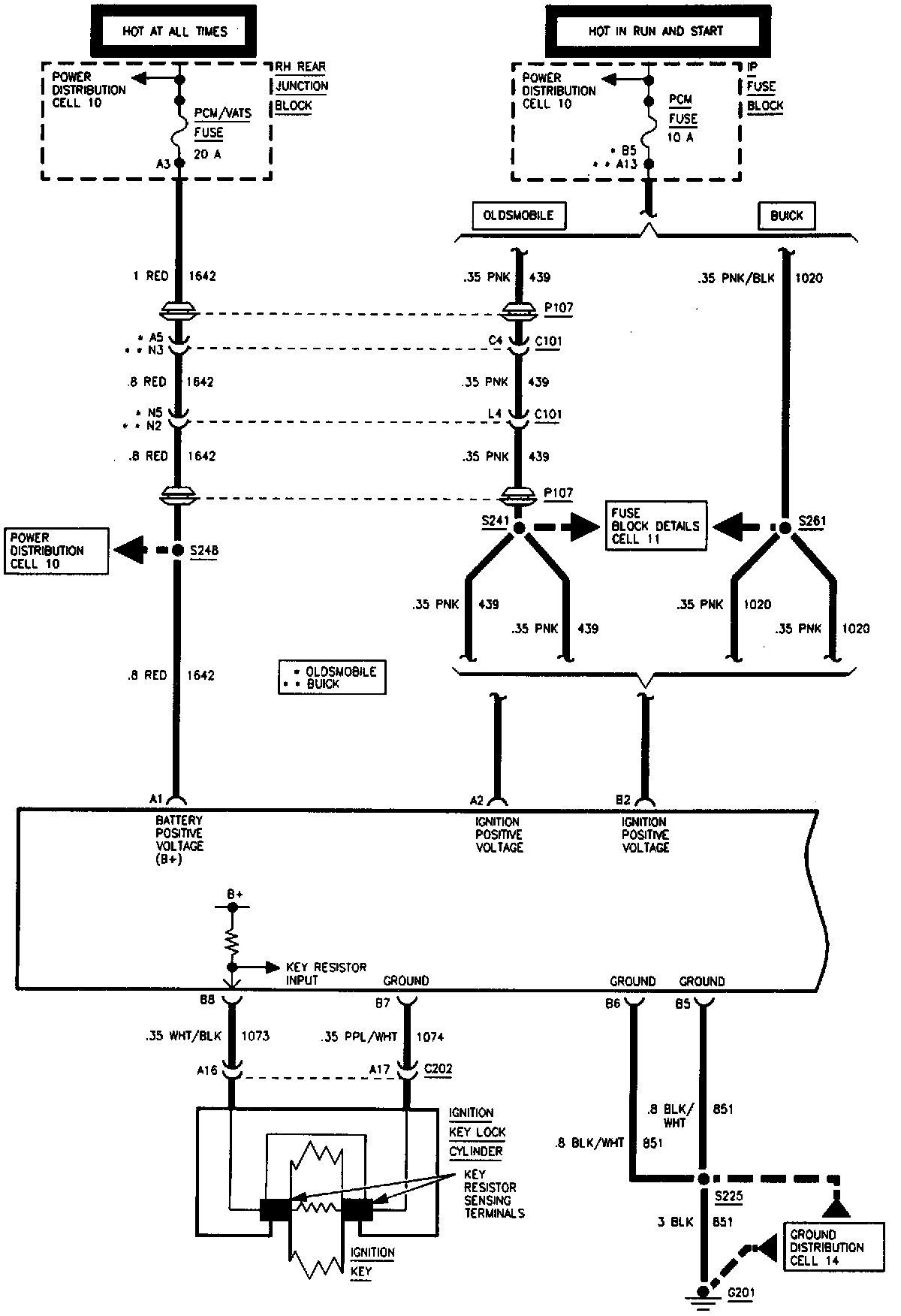

Theft Deterrent System: Pass-Key(R) II (Part 1 Of 2):

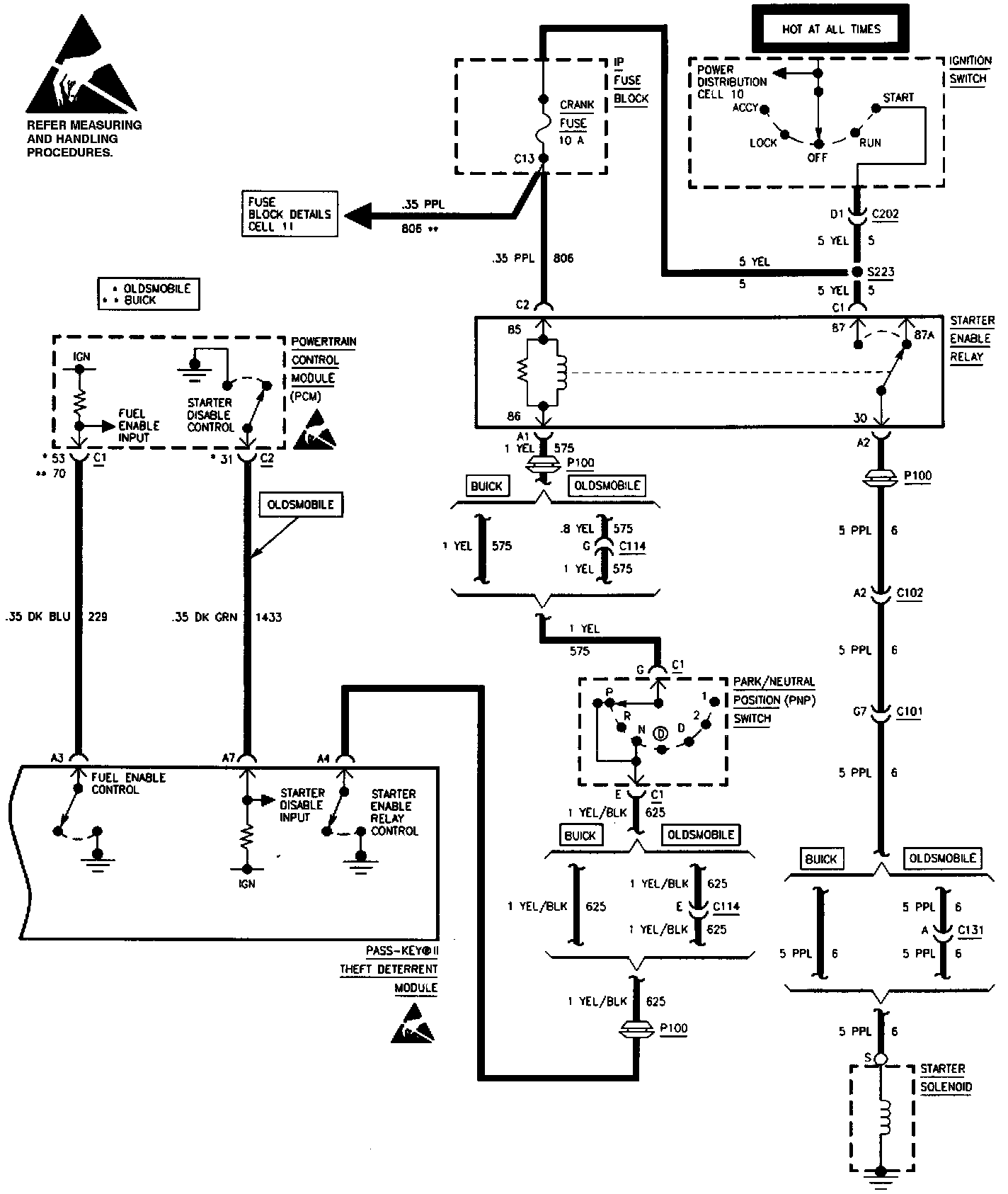

Theft Deterrent System: Pass-Key(R) II (Part 2 Of 2):
