Home >> Oldsmobile >> 1998 >> Aurora V8-4.0L VIN C >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Seat Control Module >> Memory Seat/Mirror Module >> C2

C2

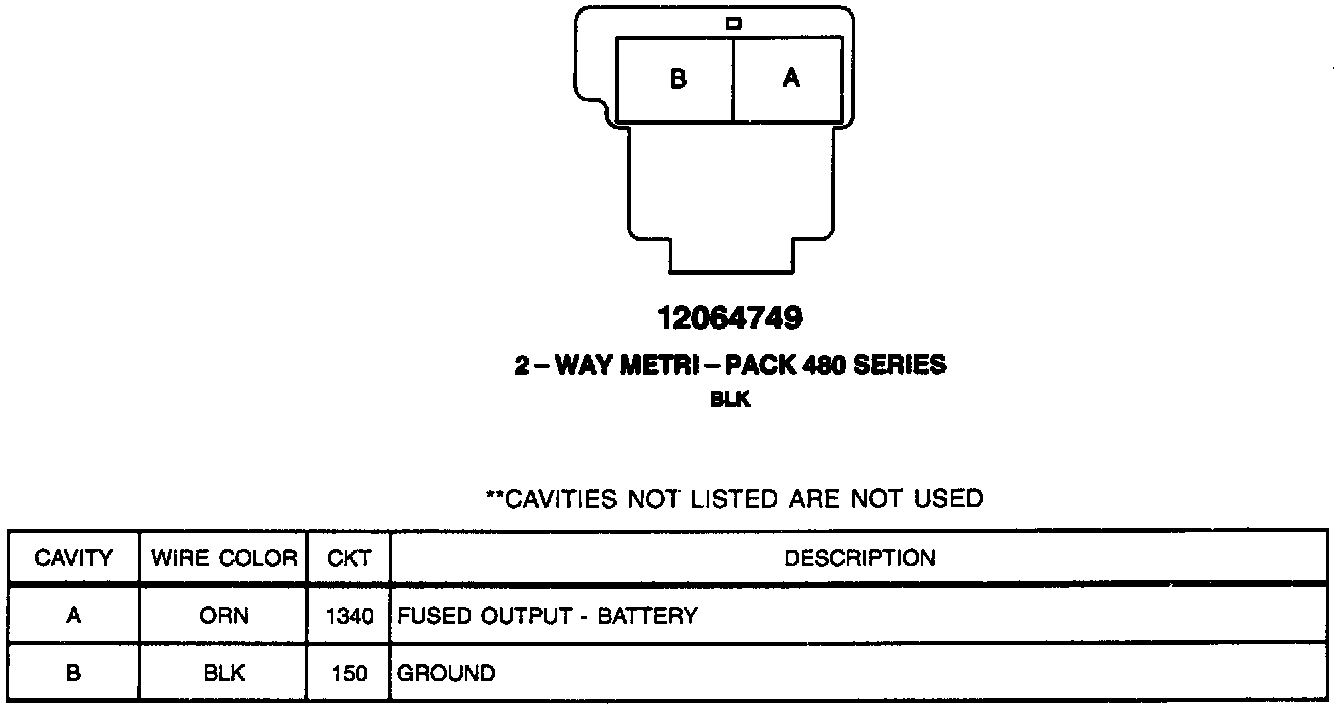

Memory Seat/Mirror Module C2:
