Home >> Oldsmobile >> 1998 >> Aurora V8-4.0L VIN C >> Repair and Diagnosis >> Diagrams >> Connector Views >> Instrument Panel, Gauges and Warning Indicators >> System Diagram >> Instrument Cluster: Analog >> C2 >> Pinout Description

Pinout Description

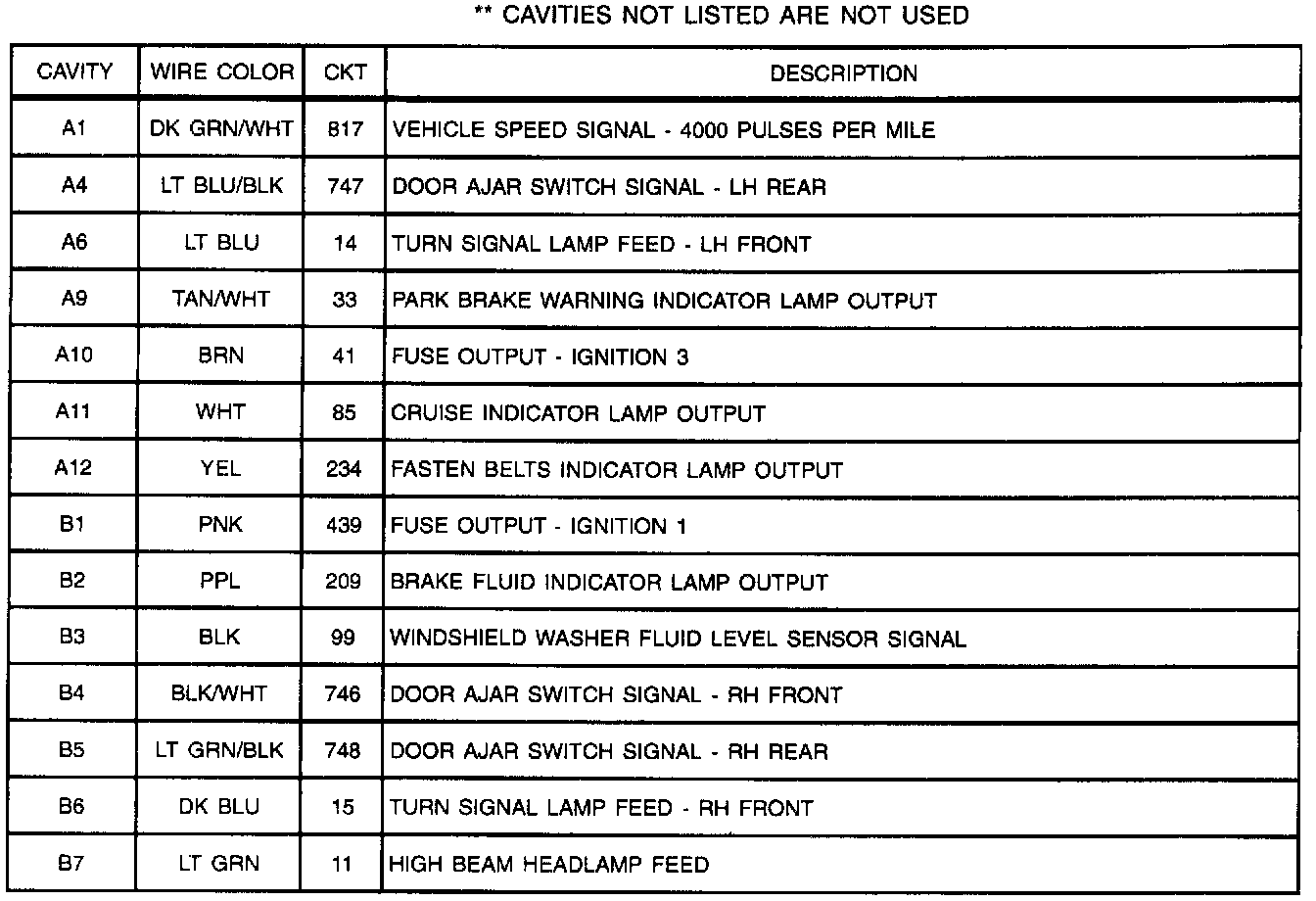

Connector Face C2 (Part 1 Of 2):

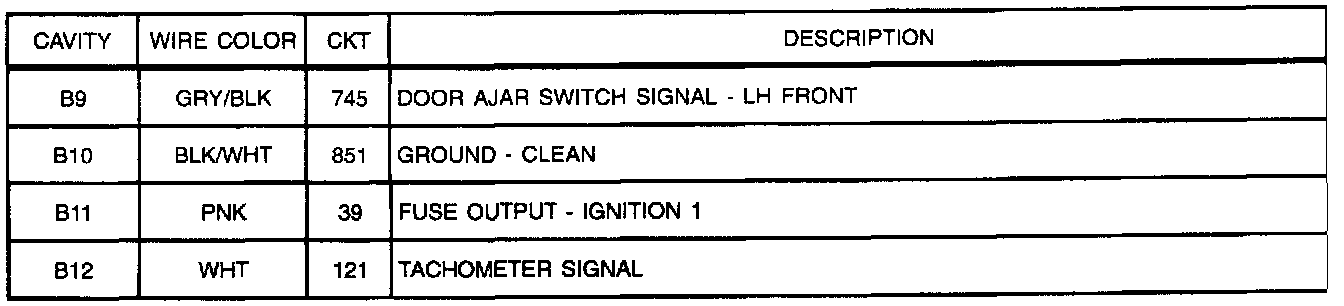

Connector Face C2 (Part 2 Of 2):
