Home >> Oldsmobile >> 1998 >> Aurora V8-4.0L VIN C >> Repair and Diagnosis >> Diagrams >> Connector Views >> Control Assembly, HVAC >> Heater & A/C Programmer >> C2

C2

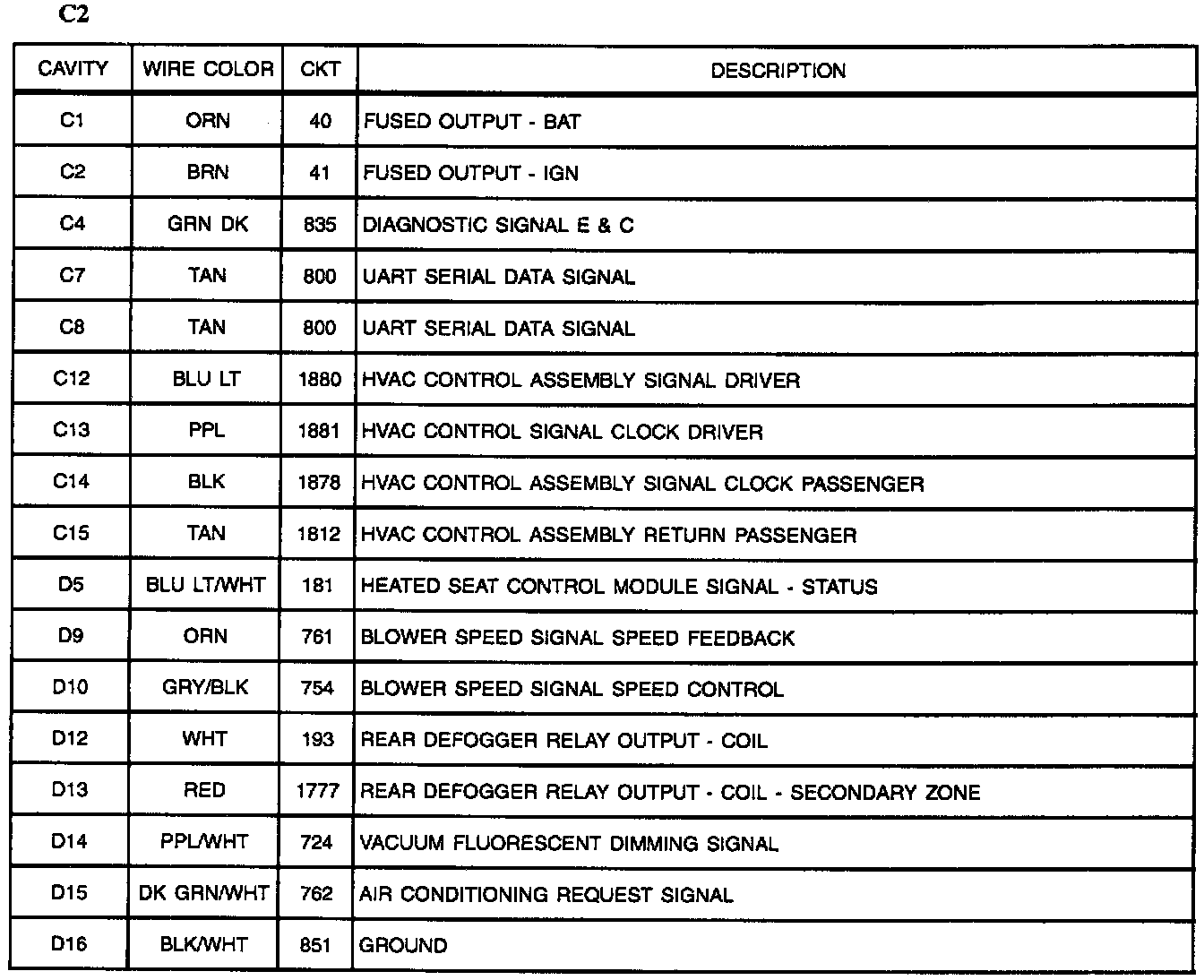

Heater And A/C Programmer C2:



Heater And A/C Programmer C1, C2:
