Home >> Oldsmobile >> 1998 >> Aurora V8-4.0L VIN C >> Repair and Diagnosis >> Diagrams >> Components >> Miscellaneous Components >> I/P Fuse Block

I/P Fuse Block

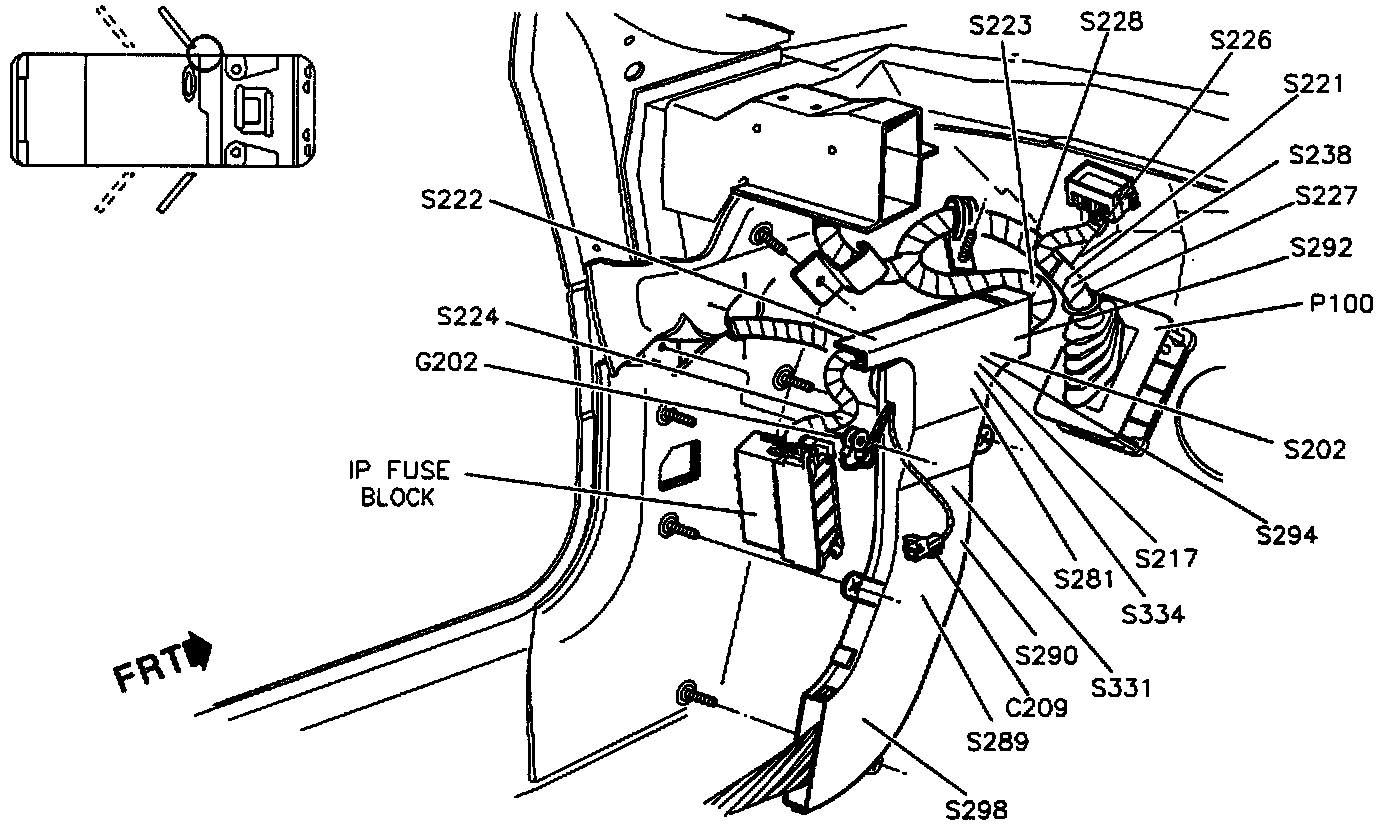

Under The Left Hand Of The Instrument Panel:



Rear Of The Passenger Compartment:
