Windshield Defroster Grille Replacement

Windshield Defrost Grille:

REMOVE OR DISCONNECT

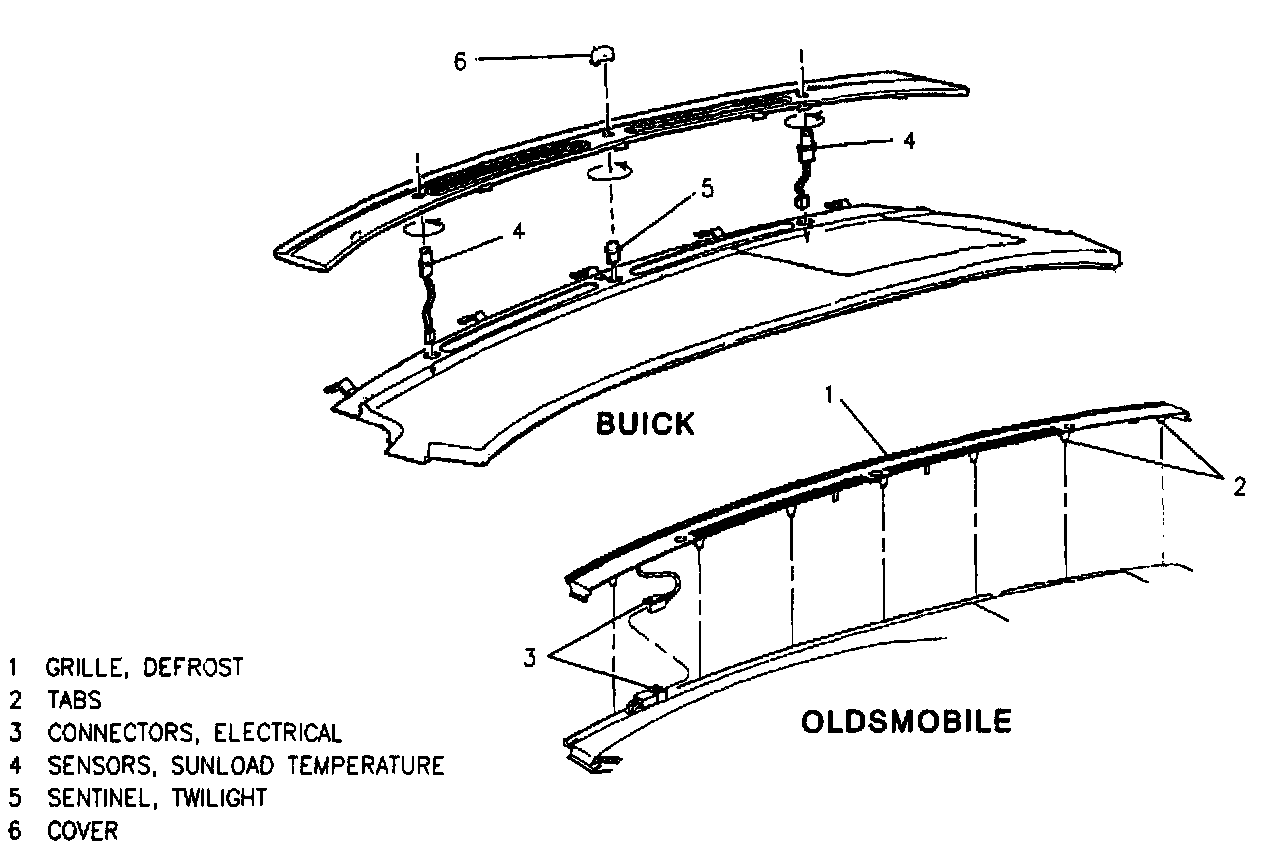

1. Carefully pry windshield defrost grille (1) up from IP assembly.
2. Sunload temperature and twilight sentinel sensors from windshield defrost grille by turning sensors 1/4 turn to remove.

INSTALL OR CONNECT
1. Sensors (4 and 5) to defrost grille by turning 1/4 turn.
2. Align tabs (2) to retainers in IP assembly and apply downward pressure to seat defrost grille.
