Instrument Panel Trim Pad Replacement

Description:

The passengers supplemental inflatable restraint (PSIR) door is not serviceable.

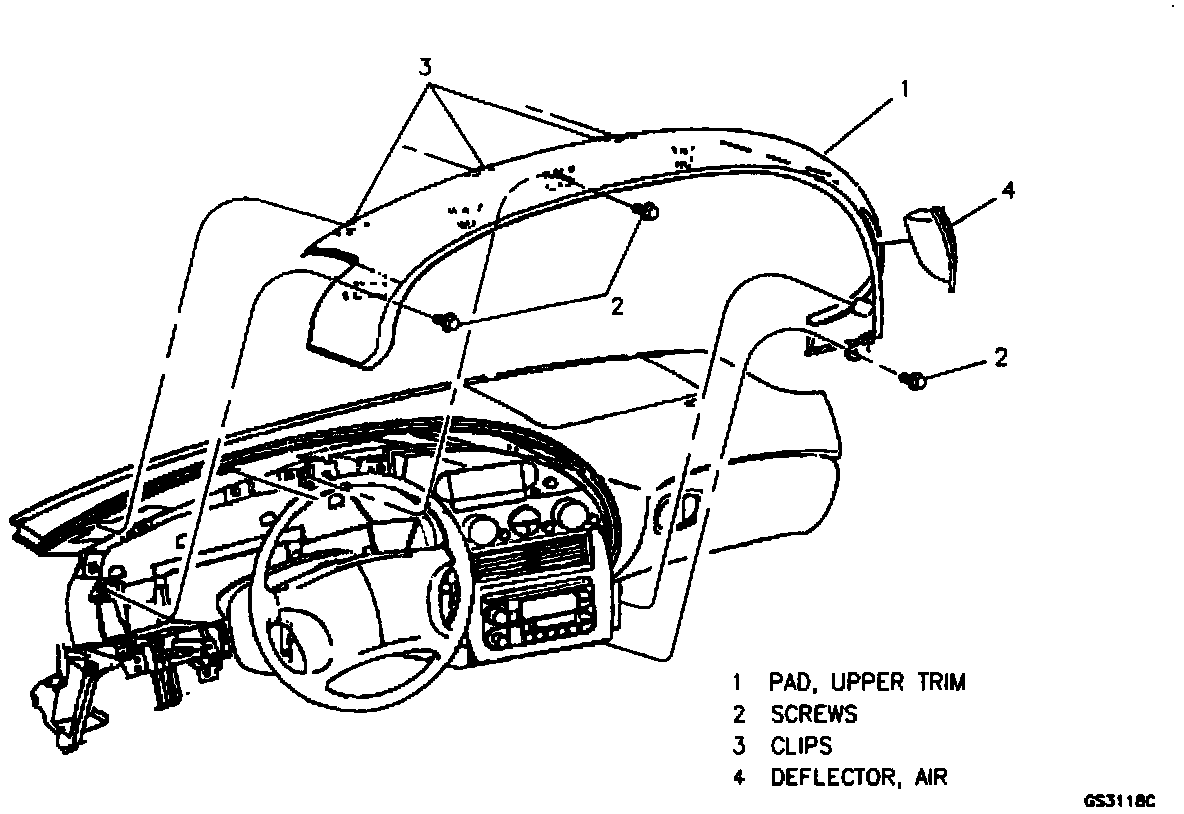

REMOVE OR DISCONNECT
1. Radio/air deflector trim plate.
2. Shifter trim plate.
3. Loosen right front side of console.
4. Instrument cluster trim plate.
5. Screws (2).
6. Upper trim pad (1) from IP assembly.

INSTALL OR CONNECT
1. Upper trim pad (1) to IP assembly.
2. Screws (2).
3. Cluster trim plate.
4. Secure console.
5. Shifter trim plate.
6. Radio/air deflector trim plate.
