Shifter Trim Plate

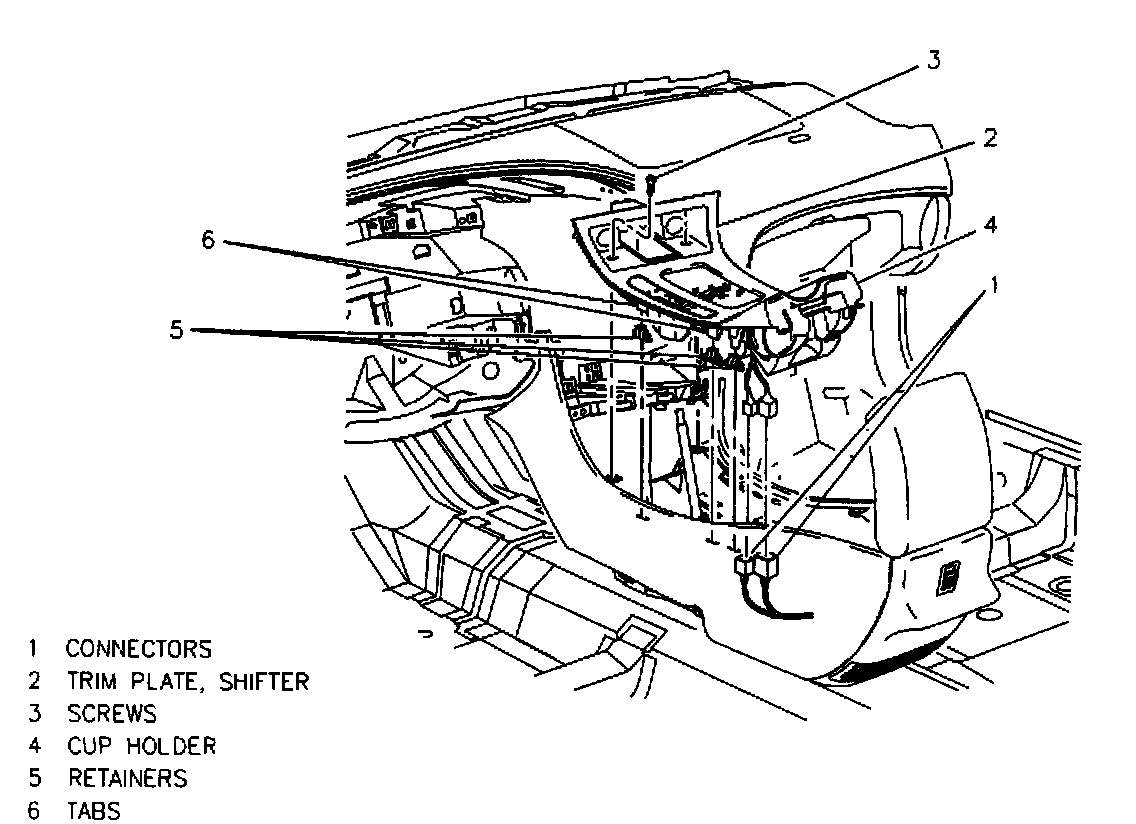

Shifter Trim Plate:

REMOVE OR DISCONNECT
1. Console compartment bin.
2. Screws (3).
3. Shifter handle.
4. Shifter trim plate by pulling up to disengage tabs (6).
5. Connectors from shifter trim plate.
6. Shifter trim plate (2) from console assembly.

INSTALL OR CONNECT
1. Connectors to shifter trim plate.
2. Shifter trim plate to console assembly, pushing down to seat retainers (5).
3. Shifter handle.
4. Screws (3).
5. Console compartment bin.
