Console Replacement

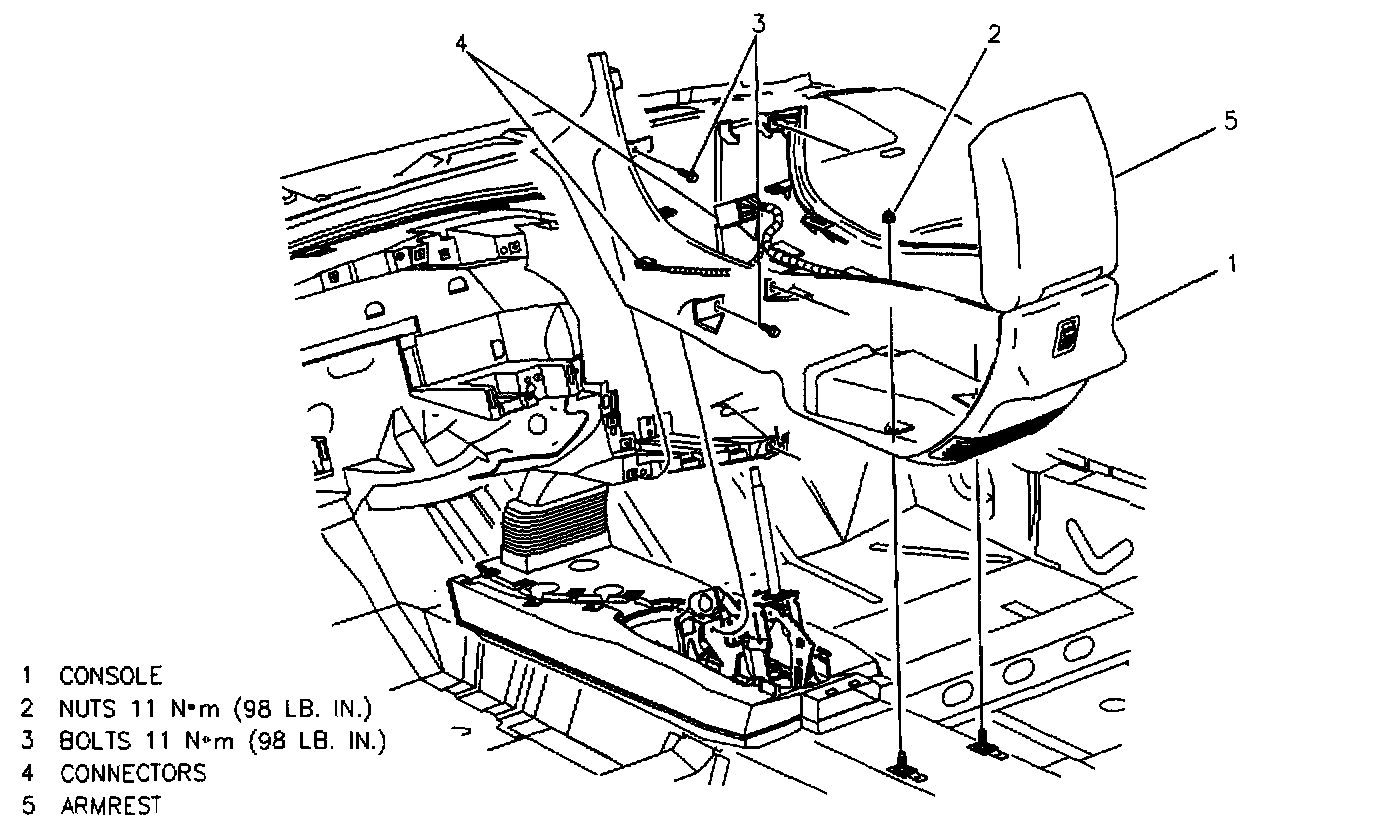

Console Assembly:

REMOVE OR DISCONNECT
1. Shifter trim plate.
2. Nuts (2) and bolts (3).
3. Electrical connectors from console.
4. Console (1).

INSTALL OR CONNECT
1. Console to vehicle.
2. Electrical connectors to console.
3. Nuts (2) and bolts (3).
4. Shifter trim plate.
